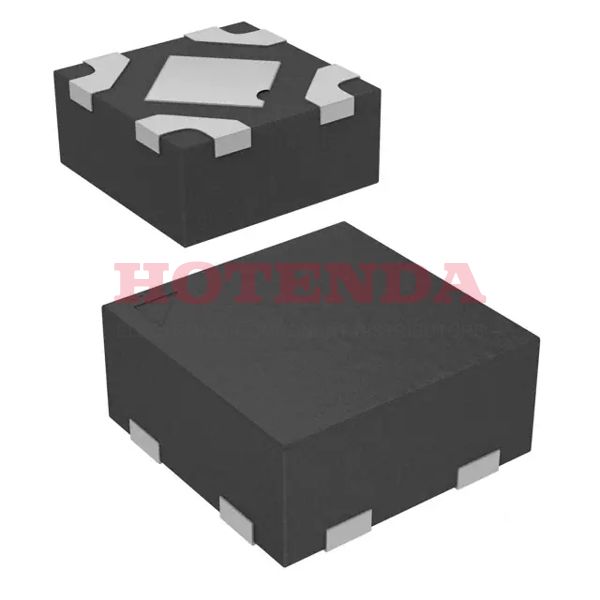

Name: MIC5365-1.8YMT TR
Brand: Microchip Technology
SKU: MIC5365-1.8YMT TR
Availability: InStock

new-10%

MIC5365-1.8YMT TR

Manufacturer part number:MIC5365-1.8YMT TR

Manufacturer:Microchip Technology

Description:Enable Fixed 0.625 mm MIC5365 PMIC -- Series 4-UDFN Exposed Pad, 4-TMLF®

Case Package:SOT-23

Datasheet:MIC5365-1.8YMT TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	4-UDFN Exposed Pad, 4-TMLF®
Surface Mount	YES
Supplier Device Package	4-TMLF® (1x1)
Number of Terminals	4
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	MIC5365
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	--
JESD-609 Code	e4
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
HTS Code	8542.39.00.01
Packing Method	TR
Technology	CMOS
Terminal Position	DUAL
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.625 mm
Reach Compliance Code	compliant
Base Part Number	MIC5365
JESD-30 Code	S-PDSO-N4
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	5.5V
Output Type	Fixed
Output Configuration	Positive
Current - Output	150mA
Control Features	Enable
Voltage - Output (Min/Fixed)	1.8V
Number of Regulators	1
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	39μA
Voltage Dropout (Max)	0.38V @ 150mA
PSRR	80dB ~ 65dB (1kHz ~ 10kHz)
Seated Height-Max	0.6 mm
Dropout Voltage1-Nom	0.18 V
Output Voltage1-Max	1.854 V
Output Voltage1-Min	1.746 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	3%
Output Current1-Max	0.15 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.38 V
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	6 V
Adjustability	FIXED
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	1.8 V
Width	1 mm
Length	1 mm
RoHS Status	ROHS3 Compliant

MIC5365-1.8YMT TR Product Details

MIC5365-1.8YMT TR Overview

Tape & Reel (TR) cases are used for delivery. The Liner regulator IC is packaged in 4-UDFN Exposed Pad, 4-TMLF® case. Fixed is the output type of the Voltage Regulator IC. As part of this electrical component, 1 regulators are implemented. Variations are made to the Surface Mount operating temperature range by the Voltage Regulator IC. Default settings are set to -40°C~125°C degrees. There is a Positive configured as the output function for this IC regulator. There is a current output of 150mA from this regulator IC. There are 1 outputs total on this voltage regulator IC in order to ensure that prompt and sufficient performance is achieved. For your information, the basic part number for this regulator IC is MIC5365. There is one type of regulator for this device, which is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR. TR is the way in which the voltage regulator IC is packed. This IC regulator is a part of the -- Series of devices.
