Name: MIC5363-1.2YMT-T5
Brand: Microchip Technology
SKU: MIC5363-1.2YMT-T5
Price: 0.40000 USD
Availability: InStock

new-10%

MIC5363-1.2YMT-T5

Manufacturer part number:MIC5363-1.2YMT-T5

Manufacturer:Microchip Technology

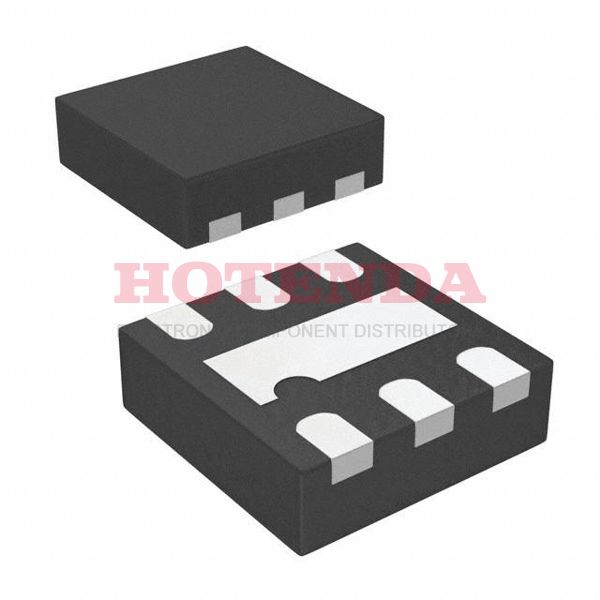

Description:Enable Fixed 0.4mm MIC5363 PMIC -- Series 6-UFDFN Exposed Pad, 6-TMLF®

Case Package:SOT-23

Datasheet:MIC5363-1.2YMT-T5 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	6-UFDFN Exposed Pad, 6-TMLF®
Surface Mount	YES
Number of Pins	6
Supplier Device Package	6-TMLF® (1.2x1.2)
Number of Terminals	6
Mounting Style	SMD/SMT
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	MIC5363
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Operating Temperature	-40°C~125°C
Packaging	Cut Tape (CT)
Series	--
Tolerance	3 %
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	6
Subcategory	PMIC - Power Management ICs
Terminal Position	DUAL
Terminal Form	NO LEAD
Number of Functions	1
Terminal Pitch	0.4mm
Reach Compliance Code	compliant
Base Part Number	MIC5363
JESD-30 Code	S-PDSO-N6
Current - Supply (Max)	70μA
Number of Outputs	1 Output
Voltage - Input (Max)	5.5V
Output Voltage	1.2V
Output Type	Fixed
Max Output Current	300mA
Polarity	Positive
Output Configuration	Positive
Output Current	300 mA
Current - Output	300mA
Quiescent Current	53μA
Control Features	Enable
Accuracy	3 %
Output Voltage 1	1.2V
Voltage - Output (Min/Fixed)	1.2V
Number of Regulators	1
Min Input Voltage	2.5V
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	53µA
Voltage Dropout (Max)	--
PSRR	70dB (1kHz)
Seated Height-Max	0.6 mm
Dropout Voltage	600mV
Product Type	LDO Voltage Regulators
Power Supply Rejection Ratio (PSRR)	70dB
Output Voltage1-Max	1.236 V
Output Voltage1-Min	1.164 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	0.3 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.6 V
Min Current Limit	325mA
Operating Temperature TJ-Max	125 °C
Line Regulation	0.02 %/V
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	1.2 V
Load Regulation	0.3 %
Product Category	LDO Voltage Regulators
Height	500μm
Length	1.2mm
Width	1.2mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

MIC5363-1.2YMT-T5 Product Details

MIC5363-1.2YMT-T5 Overview

In the case of Cut Tape (CT) cases, the regulater IC is delivered. Packaging of the Liner regulator IC takes the form of a 6-UFDFN Exposed Pad, 6-TMLF® case. The PMIC chip has 6 terminations. Fixed is the Voltage Regulator Chip's output type. Linear IC consists of 1 battery regulators. The range of operating temperatures of Surface Mount are programmable in the Voltage Regulator Chip, so that the temperature can be varied as desired. Keeping the temperature at -40°C~125°C degrees is necessary for this regulator to function. There is an output function of Positive configured for this regulator. Currently, 300mA are being output by it at the moment. The part includes 1 Output outputs in order to ensure that the voltage regulator IC performs effectively and in a timely manner. This voltage regulator IC has a dropout voltage of 10 volts. On the chip, there are pins for the 6 axis. Here's the basic part number for this IC regulator: MIC5363. This voltage regulator IC is what is known as a standard PMIC - Power Management ICs component. This device has a regulator type called FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR, which means it operates on a DC voltage. Upon reaching its maximal output current, 300mA, it is able to satisfy the operation requirements. It operates in the 53μA Quiescent Current state. The phone is a member of the -- Series. Tolerance is 3 %, which is quite low for this IC voltage regulator.
