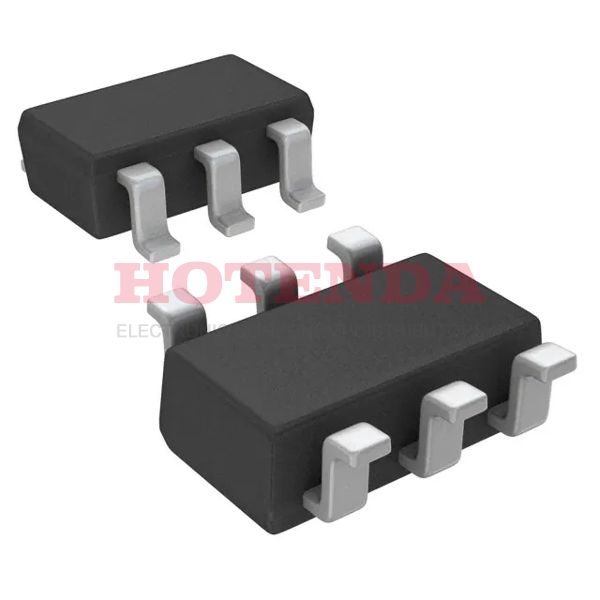

Name: MIC5320-JJYD6-TR
Brand: Microchip Technology
SKU: MIC5320-JJYD6-TR
Price: 1.10000 USD
Availability: InStock

new-10%

MIC5320-JJYD6-TR

Manufacturer part number:MIC5320-JJYD6-TR

Manufacturer:Microchip Technology

Description:Enable Fixed 0.95 mm MIC5320 PMIC MIC5320 Series 6 SOT-23-6 Thin, TSOT-23-6

Case Package:SOT-23

Datasheet:MIC5320-JJYD6-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SOT-23-6 Thin, TSOT-23-6
Surface Mount	YES
Number of Pins	6
Supplier Device Package	TSOT-23-6
Number of Terminals	6
Mounting Style	SMD/SMT
Supplier Package	TSOT
Input Voltage Range	2.3, 5.5 V
Maximum Input Voltage	5.5 V
Junction to Ambient	100 °C/W
Mounting	Surface Mount
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	MIC5320
Mfr	Microchip Technology
Product Status	Active
Package Shape	RECTANGULAR
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Published	2011
Series	MIC5320
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
HTS Code	8542.39.00.01
Subcategory	PMIC - Power Management ICs
Technology	CMOS
Terminal Position	DUAL
Terminal Form	GULL WING
Number of Functions	1
Terminal Pitch	0.95 mm
Reach Compliance Code	compliant
Base Part Number	MIC5320
Pin Count	6
JESD-30 Code	R-PDSO-G6
Function	LDO
Current - Supply (Max)	190μA
Number of Outputs	2
Voltage - Input (Max)	5.5V
Output Voltage	2.5V
Output Type	Fixed
Polarity	Positive
Output Configuration	Positive
Output Current	0.15 A
Current - Output	150mA, 150mA
Quiescent Current	85 uA
Control Features	Enable
Voltage - Output (Min/Fixed)	2.5V 2.5V
Number of Regulators	2
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	120μA
Voltage Dropout (Max)	0.1V @ 150mA 0.1V @ 150mA
PSRR	65dB ~ 45dB (1kHz ~ 20kHz)
Seated Height-Max	1 mm
Dropout Voltage	35mV
Product Type	LDO Voltage Regulators
Output Voltage1-Max	2.575 V
Output Voltage1-Min	2.425 V
Regulator Type	FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR
Voltage - Output (Max)	-
Dropout Voltage1-Max	0.1 V
Min Current Limit	300mA
Screening Level	Extended Industrial
Operating Temperature TJ-Max	125 °C
Line Regulation	0.3 %/V
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	2.5 V
Load Regulation	2 %
Output Voltage2-Max	2.575 V
Output Voltage2-Min	2.425 V
Dropout Voltage2-Max	0.1 V
Product Category	LDO Voltage Regulators
Width	1.6 mm
Length	2.9 mm
RoHS Status	ROHS3 Compliant

MIC5320-JJYD6-TR Product Details

MIC5320-JJYD6-TR Overview

Tape & Reel (TR) cases are used for delivery. The Liner regulator IC is packaged in SOT-23-6 Thin, TSOT-23-6 case. Fixed is the output type of the Voltage Regulator IC. As part of this electrical component, 2 regulators are implemented. Variations are made to the Surface Mount operating temperature range by the Voltage Regulator IC. Default settings are set to -40°C~125°C degrees. There is a Positive configured as the output function for this IC regulator. There is a current output of 150mA, 150mA from this regulator IC. There are a total of 6 pins on this board. There are 2 outputs total on this voltage regulator IC in order to ensure that prompt and sufficient performance is achieved. There is a dropout voltage of 10 volts on this IC regulator. Chips have 6 pins. For your information, the basic part number for this regulator IC is MIC5320. In this case, we have a typical PMIC - Power Management ICs component. There is one type of regulator for this device, which is FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR. It operates in the 85 uA Quiescent Current state. This IC regulator is a part of the MIC5320 Series of devices. You should use the regulator IC when the temperature is below 125°C. It is not possible to operate the chip below -40°C operating temperature.
