Name: MIC5306-1.8YD5
Brand: Microchip Technology
SKU: MIC5306-1.8YD5
Availability: InStock

new-10%

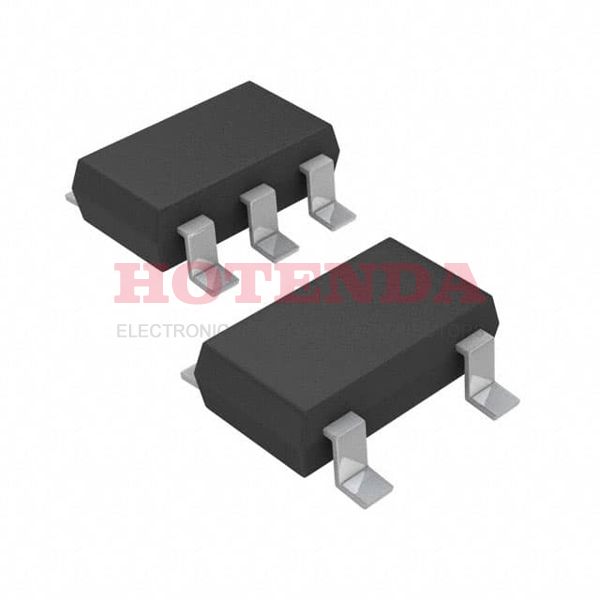

MIC5306-1.8YD5

Manufacturer part number:MIC5306-1.8YD5

Manufacturer:Microchip Technology

Description:Enable Fixed 0.95 mm MIC5306 PMIC -- Series SOT-23-5 Thin, TSOT-23-5

Case Package:SOT-23

Datasheet:MIC5306-1.8YD5 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	SOT-23-5 Thin, TSOT-23-5
Surface Mount	YES
Supplier Device Package	TSOT-23-5
Number of Terminals	5
Package	Bulk
Base Product Number	MIC5306
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Bulk
Series	--
JESD-609 Code	e4
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Terminal Finish	NICKEL PALLADIUM GOLD
HTS Code	8542.39.00.01
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.95 mm
Reach Compliance Code	compliant
Base Part Number	MIC5306
JESD-30 Code	R-PDSO-G5
Qualification Status	Not Qualified
Voltage - Input (Max)	5.5V
Output Type	Fixed
Output Configuration	Positive
Current - Output	150mA
Control Features	Enable
Voltage - Output (Min/Fixed)	1.8V
Number of Regulators	1
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	25μA
Voltage Dropout (Max)	0.2V @ 150mA
PSRR	62dB ~ 35dB (10Hz ~ 20kHz)
Seated Height-Max	1 mm
Output Voltage1-Max	1.818 V
Output Voltage1-Min	1.782 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	0.15 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.2 V
Operating Temperature TJ-Max	125 °C
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	1.8 V
Width	2.8 mm
Length	2.9 mm
RoHS Status	ROHS3 Compliant

MIC5306-1.8YD5 Product Details

MIC5306-1.8YD5 Overview

An Bulk case is included with the delivery. There is a SOT-23-5 Thin, TSOT-23-5 case with the integrated voltage regulator. In terms of output type, Fixed is what the Regulator IC produces. The electronic component implements 1 Voltage regulator ICs. IC Regulator is possible to alter the range of the operating temperature of Surface Mount in the device. In order for this IC voltage regulator to operate, the temperature has to be kept at -40°C~125°C degrees. In this case, the output function that is configured for this regulator IC is Positive. There is an 150mAmp current output on this voltage regulator IC. It is MIC5306 for this regulator, just for your information. It is worth mentioning that the regulator type for this regulator IC is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR. This regulator IC is a part of the -- Series.
