Name: MIC5303-2.8YMT-TR
Brand: Microchip Technology
SKU: MIC5303-2.8YMT-TR
Availability: InStock

new-10%

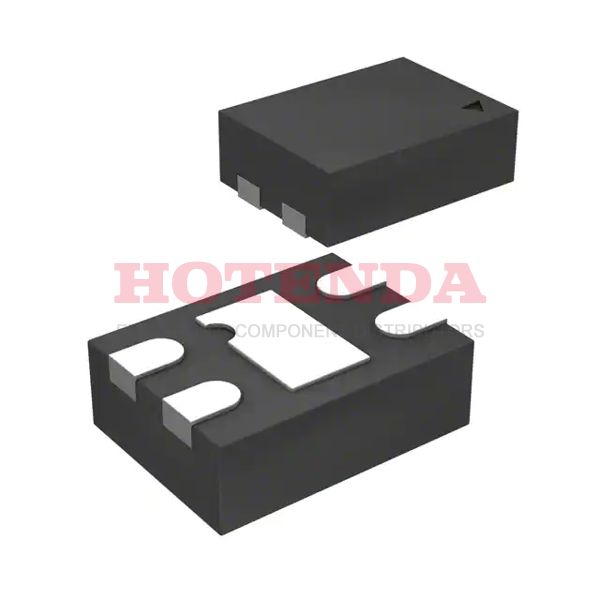

MIC5303-2.8YMT-TR

Manufacturer part number:MIC5303-2.8YMT-TR

Manufacturer:Microchip Technology

Description:Enable Fixed 0.5 mm MIC5303 PMIC -- Series 4 4-VFDFN Exposed Pad, 4-TMLF®

Case Package:SOT-23

Datasheet:MIC5303-2.8YMT-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Lifecycle Status	Production (Last Updated: 2 years ago)
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	4-VFDFN Exposed Pad, 4-TMLF®
Surface Mount	YES
Number of Pins	4
Supplier Device Package	4-TMLF® (1.2x1.6)
Number of Terminals	4
Mounting Style	SMD/SMT
Supplier Package	uDFN
Input Voltage Range	2.3, 5.5 V
Maximum Input Voltage	5.5 V
Junction to Ambient	173 °C/W
Mounting	Surface Mount
RoHS	Compliant
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	MIC5303
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	RECTANGULAR
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	--
JESD-609 Code	e4
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Terminal Finish	Nickel/Palladium (Ni/Pd)
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
HTS Code	8542.39.00.01
Subcategory	PMIC - Power Management ICs
Technology	CMOS
Terminal Position	DUAL
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	1
Terminal Pitch	0.5 mm
Reach Compliance Code	compliant
Base Part Number	MIC5303
Pin Count	4
JESD-30 Code	R-PDSO-N4
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	5.5V
Output Voltage	2.8V
Output Type	Fixed
Polarity	Positive
Output Configuration	Positive
Output Current	0.3 A
Current - Output	300mA
Quiescent Current	120μA
Control Features	Enable
Voltage - Output (Min/Fixed)	2.8V
Number of Regulators	1
Min Input Voltage	2.3V
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	120μA
Voltage Dropout (Max)	0.2V @ 300mA
PSRR	65dB ~ 42dB (1kHz ~ 20kHz)
Seated Height-Max	0.6 mm
Dropout Voltage	100mV
Product Type	LDO Voltage Regulators
Output Voltage1-Max	2.884 V
Output Voltage1-Min	2.716 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	0.3 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.2 V
Min Current Limit	350mA
Screening Level	Extended Industrial
Operating Temperature TJ-Max	125 °C
Output Voltage Accuracy	2 %
Line Regulation	0.3 %/V
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	2.8 V
Load Regulation	2 %
Product Category	LDO Voltage Regulators
Output Voltage Range	-
Width	1.2 mm
Length	1.6 mm
RoHS Status	ROHS3 Compliant

MIC5303-2.8YMT-TR Product Details

MIC5303-2.8YMT-TR Overview

The package contains a Tape & Reel (TR) case. In 4-VFDFN Exposed Pad, 4-TMLF® cases, it is packaged. Fixed is the IC Voltage Regulator's output type. A total of 1 regulators are implemented in this eletric component. Surface Mount operating temperature varies depending on the IC Voltage Regulator. The Regulator IC chip is set to operate at -40°C~125°C degrees. It has been configured that the output function of this IC regulator is Positive. There is an output of 300mA at the moment. 4 pins make up the sum of this IC voltage regulator. As a result of this IC voltage regulator's 1 outputs, it ensures prompt, adequate performance for all your applications. As far as its dropout voltage is concerned, it is 10 volts. The regulator IC has 4 pins. I just wanted to let you know that this IC voltage regulator has the part number MIC5303 as its basic part number. In terms of components, this is an example of a PMIC - Power Management ICs component. This device is controlled by a FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR type regulator. It operates in the 120μA Quiescent Current state. It belongs to the -- Series of regulators. Under 125°C degrees, you should use the regulator IC. Temperatures below -40°C are not allowed on the chip.
