Name: MIC5283-5.0YML-TR
Brand: Microchip Technology
SKU: MIC5283-5.0YML-TR
Price: 1.90000 USD
Availability: InStock

new-10%

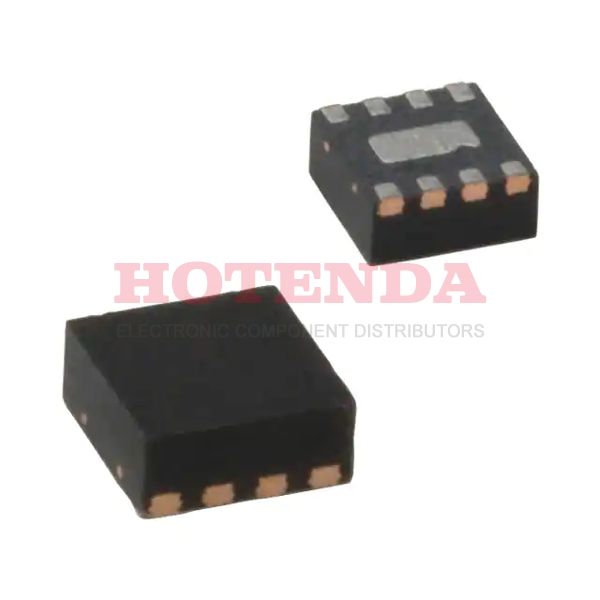

MIC5283-5.0YML-TR

Manufacturer part number:MIC5283-5.0YML-TR

Manufacturer:Microchip Technology

Description:-- Fixed 0.65 mm MIC5283 PMIC -- Series 8-VDFN Exposed Pad, 8-MLF®

Case Package:SOT-23

Datasheet:MIC5283-5.0YML-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Lifecycle Status	Production (Last Updated: 2 years ago)
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-VDFN Exposed Pad, 8-MLF®
Surface Mount	YES
Number of Pins	8
Supplier Device Package	8-MLF® (3x3)
Number of Terminals	8
Mounting Style	SMD/SMT
Dropout Voltage@Current (Max)	2.8@150MA
Package Type	DFN EP
Dropout Voltage@Current (Typ)	1.8@150MA
Operating Temp Range	-40C to 125C
Schedule B	8542390000, 8542390000/8542390000, 8542390000/8542390000/8542390000, 8542390000/8542390000/8542390000/8542390000
RoHS	Compliant
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	MIC5283
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	--
JESD-609 Code	e4
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	LDO
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
HTS Code	8542.39.00.01
Subcategory	PMIC - Power Management ICs
Packing Method	TR
Terminal Position	DUAL
Terminal Form	NO LEAD
Number of Functions	1
Terminal Pitch	0.65 mm
Reach Compliance Code	compliant
Base Part Number	MIC5283
JESD-30 Code	S-XDSO-N8
Number of Outputs	1
Voltage - Input (Max)	120V
Output Voltage	5V
Output Type	Fixed
Max Output Current	150mA
Polarity	Positive
Max Supply Voltage	120 V
Min Supply Voltage	6 V
Output Configuration	Positive
Output Current	150(mA)
Current - Output	150mA
Quiescent Current	14(uA)
Control Features	--
Accuracy	5 %
Input Voltage (Min)	6(V)
Voltage - Output (Min/Fixed)	5V
Number of Regulators	1
Min Input Voltage	6V
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	14μA
Voltage Dropout (Max)	2.8V @ 150mA
Max Input Voltage	120V
PSRR	70dB ~ 65dB (100Hz ~ 100kHz)
Seated Height-Max	1 mm
Dropout Voltage	1.8V
Product Type	Linear Voltage Regulators
Dropout Voltage1-Nom	1.8 V
Min Output Voltage	5V
Output Voltage1-Max	5.25 V
Output Voltage1-Min	4.75 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	5%
Output Current1-Max	0.15 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	2.8 V
Min Current Limit	180mA
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	125 V
Adjustability	FIXED
Max Junction Temperature (Tj)	125 °C
Line Regulation	0.04%/V
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	5 V
Load Regulation	-
Input Voltage	120(V)
Product Category	Linear Voltage Regulators
Height	1 mm
Width	3 mm
Length	3 mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MIC5283-5.0YML-TR Product Details

MIC5283-5.0YML-TR Overview

Tape & Reel (TR) cases are used for delivery. The Liner regulator IC is packaged in 8-VDFN Exposed Pad, 8-MLF® case. Fixed is the output type of the Voltage Regulator IC. As part of this electrical component, 1 regulators are implemented. Variations are made to the Surface Mount operating temperature range by the Voltage Regulator IC. Default settings are set to -40°C~125°C degrees. There is a Positive configured as the output function for this IC regulator. There is a current output of 150mA from this regulator IC. There are 1 outputs total on this voltage regulator IC in order to ensure that prompt and sufficient performance is achieved. There is a dropout voltage of 10 volts on this IC regulator. Chips have 8 pins. For your information, the basic part number for this regulator IC is MIC5283. In this case, we have a typical PMIC - Power Management ICs component. There is one type of regulator for this device, which is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR. TR is the way in which the voltage regulator IC is packed. In order to meet the operation requirements, its maximal output current reaches 150mA. It operates in the 14(uA) Quiescent Current state. This IC regulator is a part of the -- Series of devices. You should use the regulator IC when the temperature is below 125°C. It is not possible to operate the chip below -40°C operating temperature. The top supply voltage can be 120 V volts.
