Name: MIC5282-3.3YMM-TR
Brand: Microchip Technology
SKU: MIC5282-3.3YMM-TR
Price: 1.67000 USD
Availability: InStock

new-10%

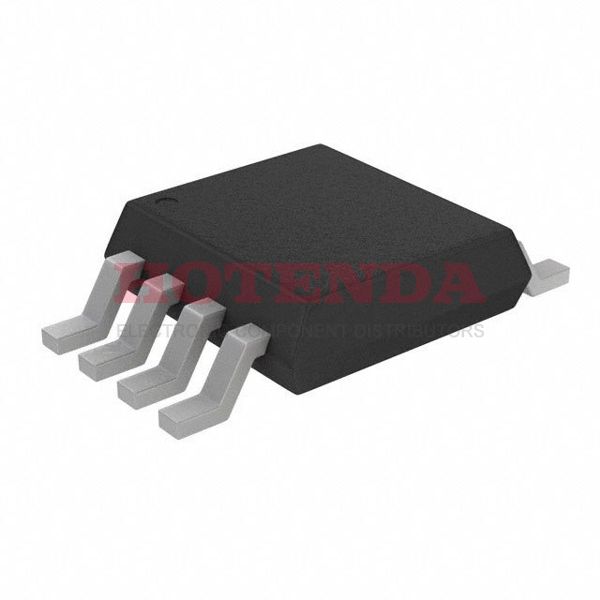

MIC5282-3.3YMM-TR

Manufacturer part number:MIC5282-3.3YMM-TR

Manufacturer:Microchip Technology

Description:-- Fixed 0.65 mm MIC5282-3.3 PMIC -- Series 8 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Case Package:SOT-23

Datasheet:MIC5282-3.3YMM-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Surface Mount	YES
Supplier Device Package	8-MSOP
Number of Terminals	8
Mounting Style	SMD/SMT
Supplier Package	MSOP
Input Voltage Range	6, 120 V
Maximum Input Voltage	120 V
Junction to Ambient	160 °C/W
Mounting	Surface Mount
Dropout Voltage@Current (Max)	3@50MA
Package Type	MSOP
Dropout Voltage@Current (Typ)	2@50MA
Operating Temp Range	-40C to 125C
Package	Tape & Reel (TR);Cut Tape (CT);
Base Product Number	MIC5282
Mfr	Microchip Technology
Product Status	Active
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology / Atmel
RoHS	Details
Package Shape	SQUARE
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	--
JESD-609 Code	e4
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN Code	EAR99
Type	Standard
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
HTS Code	8542.39.00.01
Subcategory	PMIC - Power Management ICs
Packing Method	TR
Technology	BICMOS
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.65 mm
Reach Compliance Code	compliant
Base Part Number	MIC5282-3.3
Pin Count	8
JESD-30 Code	S-PDSO-G8
Function	LDO
Number of Outputs	1
Voltage - Input (Max)	120V
Output Voltage	3.3V
Output Type	Fixed
Polarity	Positive
Output Configuration	Positive
Output Current	0.05 A
Current - Output	50mA
Quiescent Current	11(uA)
Control Features	--
Input Voltage (Min)	6(V)
Voltage - Output (Min/Fixed)	3.3V
Number of Regulators	1
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	11μA
Voltage Dropout (Max)	3V @ 50mA
PSRR	90dB ~ 65dB (40kHz ~ 1kHz)
Seated Height-Max	1.04 mm
Dropout Voltage	2V
Product Type	LDO Voltage Regulators
Dropout Voltage1-Nom	2 V
Output Voltage1-Max	3.465 V
Output Voltage1-Min	3.135 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Voltage Tolerance-Max	5%
Output Current1-Max	0.5 A
Voltage - Output (Max)	--
Min Current Limit	60mA
Screening Level	Extended Industrial
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	125 V
Adjustability	FIXED
Line Regulation	0.5 %/V
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	3.3 V
Load Regulation	1.2 %
Input Voltage	120(V)
Product Category	LDO Voltage Regulators
Width	3 mm
Length	3 mm
RoHS Status	ROHS3 Compliant

MIC5282-3.3YMM-TR Product Details

MIC5282-3.3YMM-TR Overview

In a Tape & Reel (TR) case, the IC voltage regulator is delivered. A 8-TSSOP, 8-MSOP (0.118, 3.00mm Width) case contains the Liner IC. This PMIC chip has an output type of Fixed. In this electrical part, there are 1 regulators that are implemented. Voltage Regulated IC Surface Mount varies its operating temperature range. The IC Voltage Regulator's operating temperature is -40°C~125°C degrees. Currently, this regulator IC has an output function configured as Positive as its output function. The current output of this IC regulator is 50mA. There are 8 pins in total on this board. Featuring 1 outputs in total, this voltage regulator IC enables prompt, sufficient performance regardless of the application. There is a 10 volt dropout voltage on this transistor. It is MIC5282-3.3 for this voltage regulator IC, just for your information. I would describe this component as a typical PMIC - Power Management ICs component. In this case, the regulator type is FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR, which corresponds to this voltage regulator IC. A packing method for the IC regulator is TR, which means it is packed in a certain way. It operates in the 11(uA) Quiescent Current state. In fact, it is voltage regulator IC of the -- Series of cameras. When the temperature is below 125°C, you are advised to use the voltage regulator IC. The chip's operating temperature cannot be lowered below -40°C.
