Name: MIC5259-3.0BD5-TR
Brand: Microchip Technology
SKU: MIC5259-3.0BD5-TR
Availability: InStock

new-10%

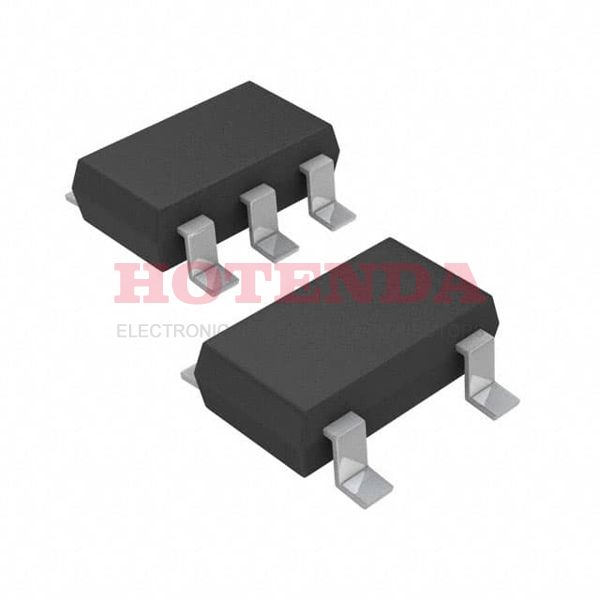

MIC5259-3.0BD5-TR

Manufacturer part number:MIC5259-3.0BD5-TR

Manufacturer:Microchip Technology

Description:Enable Fixed 0.95 mm MIC5259 PMIC -- Series 5 SOT-23-5 Thin, TSOT-23-5

Case Package:SOT-23

Datasheet:MIC5259-3.0BD5-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	SOT-23-5 Thin, TSOT-23-5
Surface Mount	YES
Supplier Device Package	TSOT-23-5
Number of Terminals	5
Package	Tape & Reel (TR)
Base Product Number	MIC5259
Mfr	Microchip Technology
Product Status	Discontinued at Digi-Key
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	--
JESD-609 Code	e0
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn85Pb15)
HTS Code	8542.39.00.01
Technology	CMOS
Terminal Position	DUAL
Terminal Form	GULL WING
Number of Functions	1
Terminal Pitch	0.95 mm
Reach Compliance Code	compliant
Base Part Number	MIC5259
Pin Count	5
JESD-30 Code	R-PDSO-G5
Current - Supply (Max)	250μA
Qualification Status	Not Qualified
Voltage - Input (Max)	6V
Output Type	Fixed
Output Configuration	Positive
Current - Output	300mA
Control Features	Enable
Voltage - Output (Min/Fixed)	3V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Current - Quiescent (Iq)	150μA
Voltage Dropout (Max)	0.55V @ 300mA
PSRR	65dB ~ 53dB (10Hz ~ 10kHz)
Seated Height-Max	1 mm
Output Voltage1-Max	3.005 V
Output Voltage1-Min	2.995 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	0.3 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.55 V
Operating Temperature TJ-Max	125 °C
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	3 V
Width	2.8 mm
Length	2.9 mm
RoHS Status	Non-RoHS Compliant

MIC5259-3.0BD5-TR Product Details

MIC5259-3.0BD5-TR Overview

A Tape & Reel (TR) case is used to deliver this IC regulator. This voltage regulator IC comes in a SOT-23-5 Thin, TSOT-23-5 case. Output type Fixed. This component features 1 Voltage regulators. As a result of the Linear Voltage Regulator's design, the operating temperature of Surface Mount can be adjusted within a specified range. There is a temperature range of -40°C~125°C degrees during operation of the IC regulator. There is a configuration in this voltage regulator IC that specifies that its output function is Positive. In terms of its current output, it is able to supply 300mA. A total of 5 pins can be found on the board. As an FYI, this IC voltage regulator has the basic part number MIC5259. This device is regulated with the FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR type of regulator. This model is a part of the -- Series and is of high quality.
