Name: MIC5256-2.85BD5-TR
Brand: Microchip Technology
SKU: MIC5256-2.85BD5-TR
Availability: InStock

new-10%

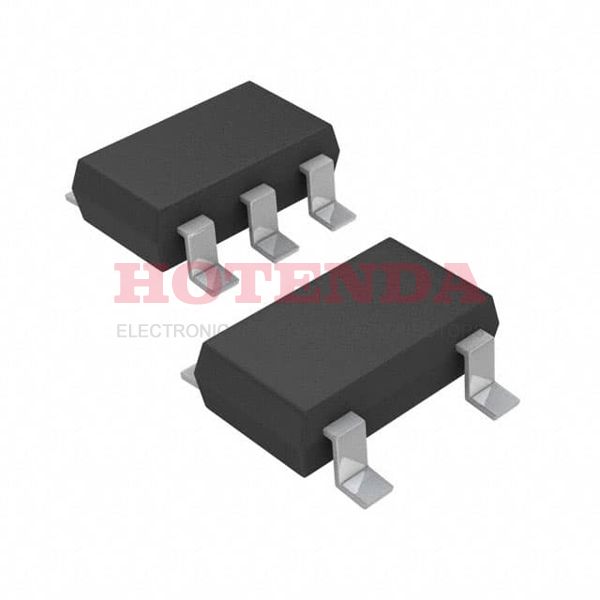

MIC5256-2.85BD5-TR

Manufacturer part number:MIC5256-2.85BD5-TR

Manufacturer:Microchip Technology

Description:Enable Fixed 0.95 mm MIC5256 PMIC -- Series 5 SOT-23-5 Thin, TSOT-23-5

Case Package:SOT-23

Datasheet:MIC5256-2.85BD5-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	SOT-23-5 Thin, TSOT-23-5
Surface Mount	YES
Supplier Device Package	TSOT-23-5
Number of Terminals	5
Package	Tape & Reel (TR)
Base Product Number	MIC5256
Mfr	Microchip Technology
Product Status	Discontinued at Digi-Key
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	--
JESD-609 Code	e0
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn85Pb15)
HTS Code	8542.39.00.01
Technology	CMOS
Terminal Position	DUAL
Terminal Form	GULL WING
Number of Functions	1
Terminal Pitch	0.95 mm
Reach Compliance Code	compliant
Base Part Number	MIC5256
Pin Count	5
JESD-30 Code	R-PDSO-G5
Qualification Status	Not Qualified
Voltage - Input (Max)	6V
Output Type	Fixed
Output Configuration	Positive
Current - Output	150mA
Control Features	Enable
Voltage - Output (Min/Fixed)	2.85V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Current - Quiescent (Iq)	150μA
Voltage Dropout (Max)	0.25V @ 150mA
PSRR	60dB ~ 45dB (10Hz ~ 10kHz)
Seated Height-Max	1 mm
Output Voltage1-Max	2.907 V
Output Voltage1-Min	2.793 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	0.15 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.25 V
Operating Temperature TJ-Max	125 °C
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	2.85 V
Width	1.6 mm
Length	2.9 mm
RoHS Status	Non-RoHS Compliant

MIC5256-2.85BD5-TR Product Details

MIC5256-2.85BD5-TR Overview

Deliveries are in Tape & Reel (TR) cases. The package is in a SOT-23-5 Thin, TSOT-23-5 case. In this case, Fixed represents the output type of the Voltage Regulated IC. This part implements 1 regulator ICs, which can be found in the following table. Regulator IC varies the range of Surface Mount operating temperatures. The Voltage Regulated IC operates at a temperature of -40°C~125°C degrees, which is its operating temperature. It is configured for output function Positive on this regulator. There is an output current of 150mA on this regulator. The total number of pins in the regulator is 5. As an FYI, this IC voltage regulator has the basic part number MIC5256. A FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR regulator is the type of regulator that is used for this device. As part of the -- Series, this IC voltage regulator belongs to that category.
