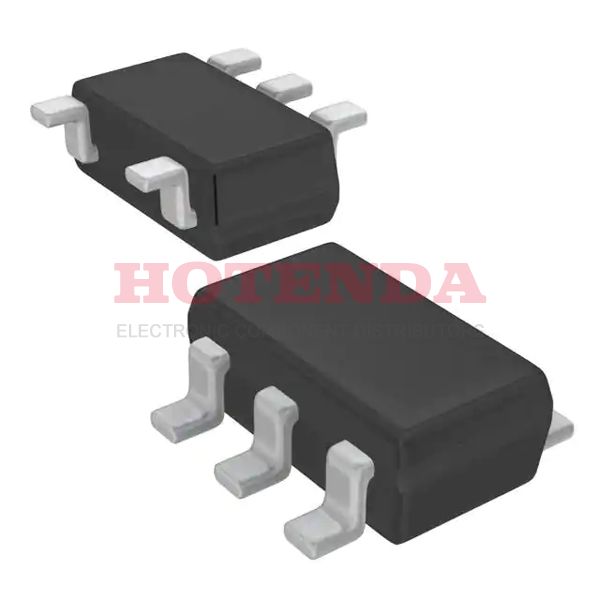

Name: MIC5255-3.5YM5 TR
Brand: Microchip Technology
SKU: MIC5255-3.5YM5 TR
Availability: InStock

new-10%

MIC5255-3.5YM5 TR

Manufacturer part number:MIC5255-3.5YM5 TR

Manufacturer:Microchip Technology

Description:Enable Fixed 0.95 mm MIC5255 PMIC - Series SC-74A, SOT-753

Case Package:SOT-23

Datasheet:MIC5255-3.5YM5 TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	SC-74A, SOT-753
Surface Mount	YES
Supplier Device Package	SOT-23-5
Number of Terminals	5
Package	Tape & Reel (TR)
Base Product Number	MIC5255
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	-
JESD-609 Code	e4
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Terminal Finish	NICKEL PALLADIUM GOLD
HTS Code	8542.39.00.01
Technology	CMOS
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.95 mm
Reach Compliance Code	compliant
Base Part Number	MIC5255
JESD-30 Code	R-PDSO-G5
Qualification Status	Not Qualified
Voltage - Input (Max)	6V
Output Type	Fixed
Output Configuration	Positive
Current - Output	150mA
Control Features	Enable
Voltage - Output (Min/Fixed)	3.5V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Current - Quiescent (Iq)	150μA
Voltage Dropout (Max)	0.25V @ 150mA
PSRR	60dB ~ 50dB (10Hz ~ 10kHz)
Seated Height-Max	1.45 mm
Output Voltage1-Max	3.57 V
Output Voltage1-Min	3.43 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	0.15 A
Voltage - Output (Max)	-
Dropout Voltage1-Max	0.25 V
Operating Temperature TJ-Max	125 °C
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	3.5 V
Width	1.6 mm
Length	2.9 mm
RoHS Status	ROHS3 Compliant

MIC5255-3.5YM5 TR Product Details

MIC5255-3.5YM5 TR Overview

This Voltage Regulator IC comes inTape & Reel (TR) packaging. This battery regulator is contained in a SC-74A, SOT-753 package. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 150mA. FYI, the basic part number for this IC regulator is MIC5255. The regulator type for this IC regulator is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR. It is part of the - Series.
