Name: MIC5255-2.7BM5-TR
Brand: Microchip Technology
SKU: MIC5255-2.7BM5-TR
Availability: InStock

new-10%

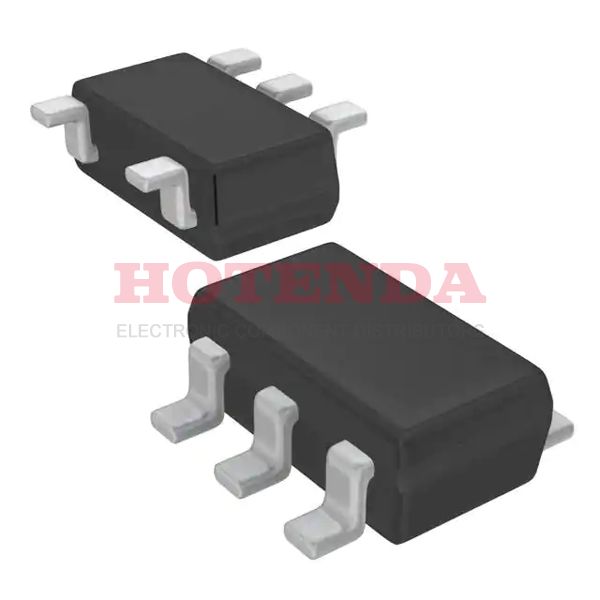

MIC5255-2.7BM5-TR

Manufacturer part number:MIC5255-2.7BM5-TR

Manufacturer:Microchip Technology

Description:Enable Fixed 0.95 mm MIC5255 PMIC - Series 5 SC-74A, SOT-753

Case Package:SOT-23

Datasheet:MIC5255-2.7BM5-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	SC-74A, SOT-753
Surface Mount	YES
Supplier Device Package	SOT-23-5
Number of Terminals	5
Package	Tape & Reel (TR)
Base Product Number	MIC5255
Mfr	Microchip Technology
Product Status	Discontinued at Digi-Key
Package Shape	RECTANGULAR
Manufacturer	Rochester Electronics LLC
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	-
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Technology	CMOS
Terminal Position	DUAL
Terminal Form	GULL WING
Number of Functions	1
Terminal Pitch	0.95 mm
Reach Compliance Code	unknown
Base Part Number	MIC5255
Pin Count	5
JESD-30 Code	R-PDSO-G5
Voltage - Input (Max)	6V
Output Type	Fixed
Output Configuration	Positive
Current - Output	150mA
Control Features	Enable
Voltage - Output (Min/Fixed)	2.7V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Current - Quiescent (Iq)	150μA
Voltage Dropout (Max)	0.25V @ 150mA
PSRR	60dB ~ 50dB (10Hz ~ 10kHz)
Seated Height-Max	1.45 mm
Output Voltage1-Max	2.754 V
Output Voltage1-Min	2.646 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	0.15 A
Voltage - Output (Max)	-
Dropout Voltage1-Max	0.25 V
Operating Temperature TJ-Max	125 °C
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	2.7 V
Width	1.6 mm
Length	2.9 mm
RoHS Status	Non-RoHS Compliant

MIC5255-2.7BM5-TR Product Details

MIC5255-2.7BM5-TR Overview

Tape & Reel (TR) cases are used for delivery. The Liner regulator IC is packaged in SC-74A, SOT-753 case. Fixed is the output type of the Voltage Regulator IC. As part of this electrical component, 1 regulators are implemented. Variations are made to the Surface Mount operating temperature range by the Voltage Regulator IC. Default settings are set to -40°C~125°C degrees. There is a Positive configured as the output function for this IC regulator. There is a current output of 150mA from this regulator IC. There are a total of 5 pins on this board. For your information, the basic part number for this regulator IC is MIC5255. There is one type of regulator for this device, which is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR. This IC regulator is a part of the - Series of devices.
