Name: MIC5253-3.3BC5
Brand: Microchip Technology
SKU: MIC5253-3.3BC5
Availability: InStock

new-10%

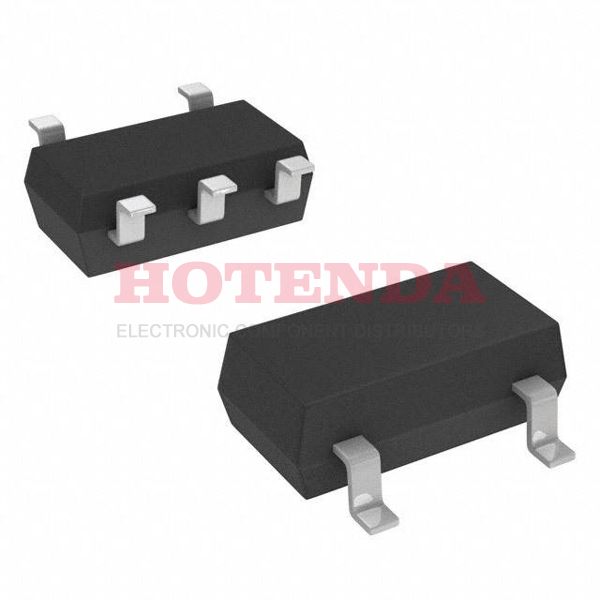

MIC5253-3.3BC5

Manufacturer part number:MIC5253-3.3BC5

Manufacturer:Microchip Technology

Description:Enable Fixed 0.65 mm MIC5253 PMIC Teeny™ Series 5 5-TSSOP, SC-70-5, SOT-353

Case Package:SOT-23

Datasheet:MIC5253-3.3BC5 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	5-TSSOP, SC-70-5, SOT-353
Surface Mount	YES
Supplier Device Package	SC-70-5
Number of Terminals	5
Package	Bulk
Base Product Number	MIC5253
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Bulk
Series	Teeny™
JESD-609 Code	e0
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn85Pb15)
HTS Code	8542.39.00.01
Subcategory	Other Regulators
Technology	CMOS
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	240
Number of Functions	1
Terminal Pitch	0.65 mm
Reach Compliance Code	compliant
Base Part Number	MIC5253
Pin Count	5
JESD-30 Code	R-PDSO-G5
Current - Supply (Max)	150μA
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	5.5V
Output Type	Fixed
Output Configuration	Positive
Current - Output	100mA
Control Features	Enable
Voltage - Output (Min/Fixed)	3.3V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Current - Quiescent (Iq)	100μA
Voltage Dropout (Max)	0.3V @ 100mA
PSRR	70dB ~ 65dB (1kHz ~ 10kHz)
Seated Height-Max	1.1 mm
Dropout Voltage1-Nom	0.165 V
Output Voltage1-Max	3.399 V
Output Voltage1-Min	3.201 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	3%
Output Current1-Max	0.1 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.3 V
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	7 V
Adjustability	FIXED
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	3.3 V
Width	1.25 mm
Length	2 mm
RoHS Status	Non-RoHS Compliant

MIC5253-3.3BC5 Product Details

MIC5253-3.3BC5 Overview

Bulk cases are used for delivery. The Liner regulator IC is packaged in 5-TSSOP, SC-70-5, SOT-353 case. Fixed is the output type of the Voltage Regulator IC. As part of this electrical component, 1 regulators are implemented. Variations are made to the Surface Mount operating temperature range by the Voltage Regulator IC. Default settings are set to -40°C~125°C degrees. There is a Positive configured as the output function for this IC regulator. There is a current output of 100mA from this regulator IC. There are a total of 5 pins on this board. There are 1 outputs total on this voltage regulator IC in order to ensure that prompt and sufficient performance is achieved. For your information, the basic part number for this regulator IC is MIC5253. In this case, we have a typical Other Regulators component. There is one type of regulator for this device, which is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR. This IC regulator is a part of the Teeny™ Series of devices.
