Name: MIC5253-3.1BC5
Brand: Microchip Technology
SKU: MIC5253-3.1BC5
Availability: InStock

new-10%

MIC5253-3.1BC5

Manufacturer part number:MIC5253-3.1BC5

Manufacturer:Microchip Technology

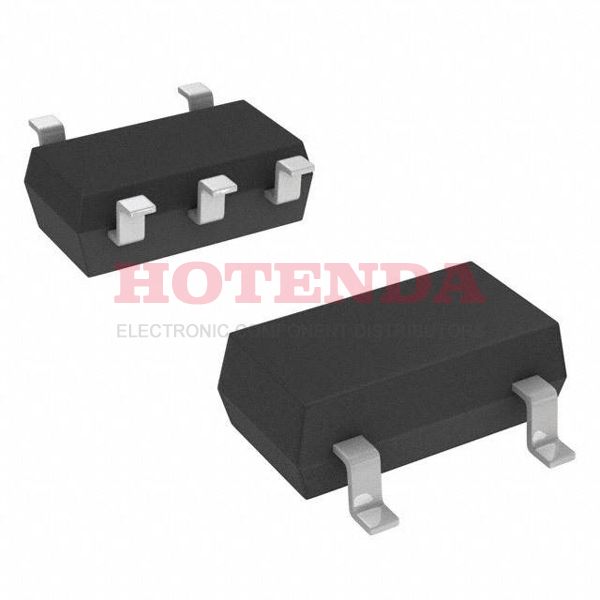

Description:Enable Fixed 0.65 mm MIC5253 PMIC Teeny™ Series 5-TSSOP, SC-70-5, SOT-353

Case Package:SOT-23

Datasheet:MIC5253-3.1BC5 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	5-TSSOP, SC-70-5, SOT-353
Surface Mount	YES
Supplier Device Package	SC-70-5
Number of Terminals	5
Package	Bulk
Base Product Number	MIC5253
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Bulk
Series	Teeny™
JESD-609 Code	e0
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Terminal Finish	TIN LEAD
HTS Code	8542.39.00.01
Technology	CMOS
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	240
Number of Functions	1
Terminal Pitch	0.65 mm
Reach Compliance Code	compliant
Base Part Number	MIC5253
JESD-30 Code	R-PDSO-G5
Current - Supply (Max)	150μA
Qualification Status	Not Qualified
Voltage - Input (Max)	5.5V
Output Type	Fixed
Output Configuration	Positive
Current - Output	100mA
Control Features	Enable
Voltage - Output (Min/Fixed)	3.1V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Current - Quiescent (Iq)	100μA
Voltage Dropout (Max)	0.3V @ 100mA
PSRR	70dB ~ 65dB (1kHz ~ 10kHz)
Seated Height-Max	1.1 mm
Output Voltage1-Max	3.193 V
Output Voltage1-Min	3.007 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	0.1 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.3 V
Operating Temperature TJ-Max	125 °C
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	3.1 V
Width	1.25 mm
Length	2 mm
RoHS Status	Non-RoHS Compliant

MIC5253-3.1BC5 Product Details

MIC5253-3.1BC5 Overview

An Bulk case is included with the delivery. There is a 5-TSSOP, SC-70-5, SOT-353 case with the integrated voltage regulator. In terms of output type, Fixed is what the Regulator IC produces. The electronic component implements 1 Voltage regulator ICs. IC Regulator is possible to alter the range of the operating temperature of Surface Mount in the device. In order for this IC voltage regulator to operate, the temperature has to be kept at -40°C~125°C degrees. In this case, the output function that is configured for this regulator IC is Positive. There is an 100mAmp current output on this voltage regulator IC. It is MIC5253 for this regulator, just for your information. It is worth mentioning that the regulator type for this regulator IC is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR. This regulator IC is a part of the Teeny™ Series.
