Name: MIC5253-2.6BC5
Brand: Microchip Technology
SKU: MIC5253-2.6BC5
Availability: InStock

new-10%

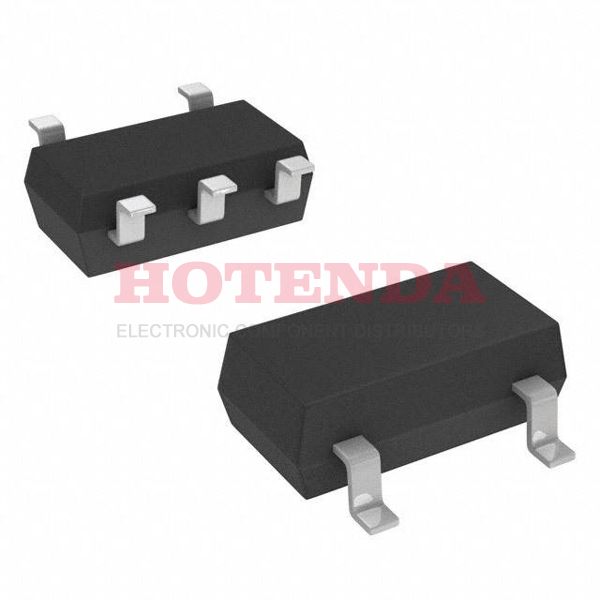

MIC5253-2.6BC5

Manufacturer part number:MIC5253-2.6BC5

Manufacturer:Microchip Technology

Description:Enable Fixed 0.65 mm MIC5253 PMIC Teeny™ Series 5 5-TSSOP, SC-70-5, SOT-353

Case Package:SOT-23

Datasheet:MIC5253-2.6BC5 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	5-TSSOP, SC-70-5, SOT-353
Surface Mount	YES
Supplier Device Package	SC-70-5
Number of Terminals	5
Package	Bulk
Base Product Number	MIC5253
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Bulk
Series	Teeny™
JESD-609 Code	e0
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn85Pb15)
HTS Code	8542.39.00.01
Subcategory	Other Regulators
Technology	CMOS
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	240
Number of Functions	1
Terminal Pitch	0.65 mm
Reach Compliance Code	compliant
Base Part Number	MIC5253
Pin Count	5
JESD-30 Code	R-PDSO-G5
Current - Supply (Max)	150μA
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	5.5V
Output Type	Fixed
Output Configuration	Positive
Current - Output	100mA
Control Features	Enable
Voltage - Output (Min/Fixed)	2.6V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Current - Quiescent (Iq)	100μA
Voltage Dropout (Max)	0.3V @ 100mA
PSRR	70dB ~ 65dB (1kHz ~ 10kHz)
Seated Height-Max	1.1 mm
Dropout Voltage1-Nom	0.165 V
Output Voltage1-Max	2.678 V
Output Voltage1-Min	2.522 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	3%
Output Current1-Max	0.1 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.3 V
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	7 V
Adjustability	FIXED
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	2.6 V
Width	1.25 mm
Length	2 mm
RoHS Status	Non-RoHS Compliant

MIC5253-2.6BC5 Product Details

MIC5253-2.6BC5 Overview

This Voltage Regulator IC comes inBulk packaging. This battery regulator is contained in a 5-TSSOP, SC-70-5, SOT-353 package. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 100mA. IC voltage regulator has a sum of 5 pins. To ensure prompt, sufficient performance, this part features 1 outputs in total. FYI, the basic part number for this IC regulator is MIC5253. This regulator IC is a typical Other Regulators. The regulator type for this IC regulator is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR. It is part of the Teeny™ Series.
