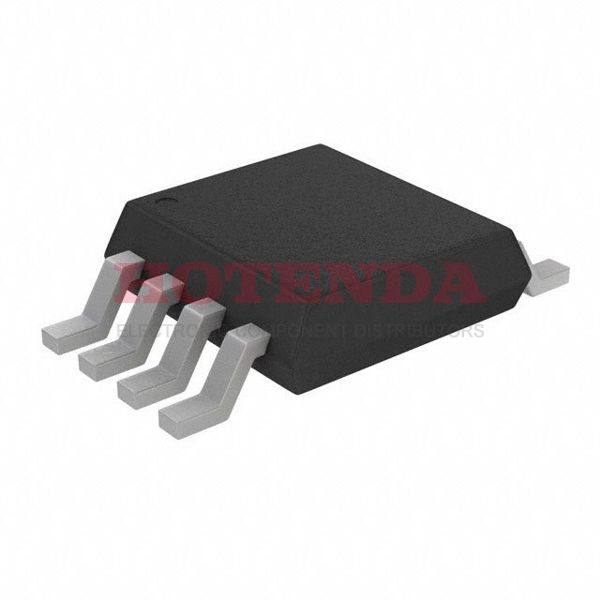

Name: MIC5249-1.8BMM
Brand: Microchip Technology
SKU: MIC5249-1.8BMM
Availability: InStock

new-10%

MIC5249-1.8BMM

Manufacturer part number:MIC5249-1.8BMM

Manufacturer:Microchip Technology

Description:Enable, Reset Fixed 0.65 mm MIC5249 PMIC -- Series 8 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Case Package:SOT-23

Datasheet:MIC5249-1.8BMM Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Surface Mount	YES
Supplier Device Package	8-MSOP
Number of Terminals	8
Package	Tube
Base Product Number	MIC5249
Mfr	Microchip Technology
Product Status	Discontinued at Digi-Key
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tube
Series	--
JESD-609 Code	e0
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn85Pb15)
HTS Code	8542.39.00.01
Subcategory	Other Regulators
Technology	CMOS
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	240
Number of Functions	1
Terminal Pitch	0.65 mm
Reach Compliance Code	not_compliant
Base Part Number	MIC5249
Pin Count	8
JESD-30 Code	S-PDSO-G8
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	6V
Output Type	Fixed
Output Configuration	Positive
Current - Output	300mA
Control Features	Enable, Reset
Voltage - Output (Min/Fixed)	1.8V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Current - Quiescent (Iq)	200μA
Voltage Dropout (Max)	0.6V @ 300mA
PSRR	65dB (120Hz)
Seated Height-Max	1.1 mm
Dropout Voltage1-Nom	0.34 V
Output Voltage1-Max	1.854 V
Output Voltage1-Min	1.746 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	3%
Output Current1-Max	0.3 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.6 V
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	7 V
Adjustability	FIXED
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	1.8 V
Width	3 mm
Length	3 mm
RoHS Status	Non-RoHS Compliant

MIC5249-1.8BMM Product Details

MIC5249-1.8BMM Overview

A Tube case is used to deliver this IC regulator. This voltage regulator IC comes in a 8-TSSOP, 8-MSOP (0.118, 3.00mm Width) case. Output type Fixed. This component features 1 Voltage regulators. As a result of the Linear Voltage Regulator's design, the operating temperature of Surface Mount can be adjusted within a specified range. There is a temperature range of -40°C~125°C degrees during operation of the IC regulator. There is a configuration in this voltage regulator IC that specifies that its output function is Positive. In terms of its current output, it is able to supply 300mA. A total of 8 pins can be found on the board. In order to deliver prompt, sufficient and reliable performance, this regulator IC has 1 outputs in total. As an FYI, this IC voltage regulator has the basic part number MIC5249. An example of such a component would be this Other Regulators component. This device is regulated with the FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR type of regulator. This model is a part of the -- Series and is of high quality.
