Name: MIC5239-5.0BMM
Brand: Microchip Technology
SKU: MIC5239-5.0BMM
Availability: InStock

new-10%

MIC5239-5.0BMM

Manufacturer part number:MIC5239-5.0BMM

Manufacturer:Microchip Technology

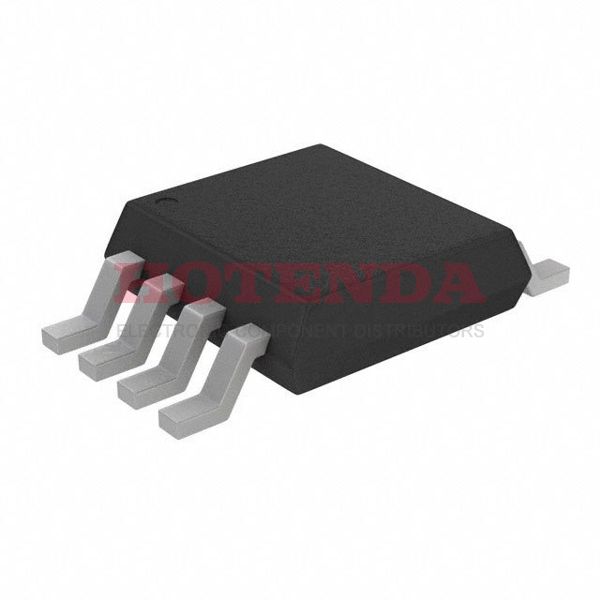

Description:Enable Fixed 0.65 mm MIC5239 PMIC -- Series 8 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Case Package:SOT-23

Datasheet:MIC5239-5.0BMM Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Surface Mount	YES
Supplier Device Package	8-MSOP
Number of Terminals	8
Package	Tube
Base Product Number	MIC5239
Mfr	Microchip Technology
Product Status	Discontinued at Digi-Key
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tube
Series	--
JESD-609 Code	e0
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn85Pb15)
HTS Code	8542.39.00.01
Subcategory	Other Regulators
Technology	BIPOLAR
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	240
Number of Functions	1
Terminal Pitch	0.65 mm
Reach Compliance Code	not_compliant
Base Part Number	MIC5239
Pin Count	8
JESD-30 Code	R-PDSO-G8
Current - Supply (Max)	15mA
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	30V
Output Type	Fixed
Output Configuration	Positive
Current - Output	500mA
Control Features	Enable
Voltage - Output (Min/Fixed)	5V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Over Voltage, Reverse Polarity
Current - Quiescent (Iq)	45μA
Voltage Dropout (Max)	0.35V @ 500mA Typ
PSRR	--
Seated Height-Max	1.09 mm
Dropout Voltage1-Nom	0.35 V
Output Voltage1-Max	5.1 V
Output Voltage1-Min	4.9 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	2%
Output Current1-Max	0.5 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.4 V
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	32 V
Adjustability	FIXED
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	5 V
Width	2.97 mm
Length	3 mm
RoHS Status	Non-RoHS Compliant

MIC5239-5.0BMM Product Details

MIC5239-5.0BMM Overview

The package contains a Tube case. In 8-TSSOP, 8-MSOP (0.118, 3.00mm Width) cases, it is packaged. Fixed is the IC Voltage Regulator's output type. A total of 1 regulators are implemented in this eletric component. Surface Mount operating temperature varies depending on the IC Voltage Regulator. The Regulator IC chip is set to operate at -40°C~125°C degrees. It has been configured that the output function of this IC regulator is Positive. There is an output of 500mA at the moment. 8 pins make up the sum of this IC voltage regulator. As a result of this IC voltage regulator's 1 outputs, it ensures prompt, adequate performance for all your applications. I just wanted to let you know that this IC voltage regulator has the part number MIC5239 as its basic part number. In terms of components, this is an example of a Other Regulators component. This device is controlled by a FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR type regulator. It belongs to the -- Series of regulators.
