Name: MIC5239-2.5YS-TR
Brand: Microchip Technology
SKU: MIC5239-2.5YS-TR
Price: 2.92000 USD
Availability: InStock

new-10%

MIC5239-2.5YS-TR

Manufacturer part number:MIC5239-2.5YS-TR

Manufacturer:Microchip Technology

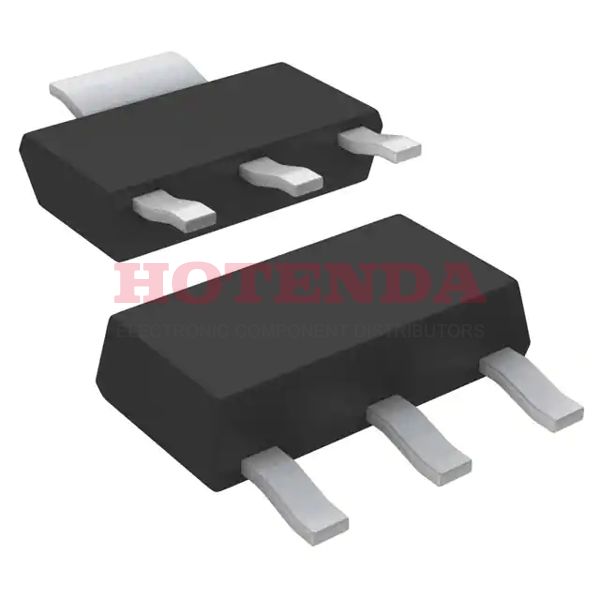

Description:Enable Fixed 2.31 mm MIC5239 PMIC -- Series 4 TO-261-4, TO-261AA

Case Package:SOT-23

Datasheet:MIC5239-2.5YS-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-261-4, TO-261AA
Surface Mount	YES
Number of Pins	4
Supplier Device Package	SOT-223-3
Number of Terminals	4
Mounting Style	SMD/SMT
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Package	Tape & Reel (TR)
Base Product Number	MIC5239
Mfr	Microchip Technology
Product Status	Active
Package Shape	RECTANGULAR
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	--
JESD-609 Code	e3
Pbfree Code	Yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN Code	EAR99
Terminal Finish	MATTE TIN
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
HTS Code	8542.39.00.01
Subcategory	PMIC - Power Management ICs
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	2.31 mm
Reach Compliance Code	compliant
Base Part Number	MIC5239
Pin Count	4
JESD-30 Code	R-PDSO-G4
Current - Supply (Max)	15mA
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	30V
Output Voltage	2.5V
Output Type	Fixed
Polarity	Positive
Output Configuration	Positive
Output Current	150 mA
Current - Output	500mA
Control Features	Enable
Voltage - Output (Min/Fixed)	2.5V
Number of Regulators	1
Min Input Voltage	2.3V
Protection Features	Over Current, Over Temperature, Over Voltage, Reverse Polarity
Current - Quiescent (Iq)	45μA
Voltage Dropout (Max)	0.35V @ 500mA Typ
PSRR	--
Seated Height-Max	1.8 mm
Dropout Voltage	350mV
Product Type	LDO Voltage Regulators
Output Voltage1-Max	2.55 V
Output Voltage1-Min	2.45 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	0.5 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.4 V
Operating Temperature TJ-Max	125 °C
Output Voltage Accuracy	1 %
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	2.5 V
Product Category	LDO Voltage Regulators
Width	3.505 mm
Length	6.5 mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MIC5239-2.5YS-TR Product Details

MIC5239-2.5YS-TR Overview

The package contains a Tape & Reel (TR) case. In TO-261-4, TO-261AA cases, it is packaged. Fixed is the IC Voltage Regulator's output type. A total of 1 regulators are implemented in this eletric component. Surface Mount operating temperature varies depending on the IC Voltage Regulator. The Regulator IC chip is set to operate at -40°C~125°C degrees. It has been configured that the output function of this IC regulator is Positive. There is an output of 500mA at the moment. In total, there are 4 pins on this chip, which makes it a very large chip. As a result of this IC voltage regulator's 1 outputs, it ensures prompt, adequate performance for all your applications. As far as its dropout voltage is concerned, it is 10 volts. The regulator IC has 4 pins. I just wanted to let you know that this IC voltage regulator has the part number MIC5239 as its basic part number. In terms of components, this is an example of a PMIC - Power Management ICs component. This device is controlled by a FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR type regulator. It belongs to the -- Series of regulators. Under 125°C degrees, you should use the regulator IC. Temperatures below -40°C are not allowed on the chip.
