Name: MIC5236-3.3BMM
Brand: Microchip Technology
SKU: MIC5236-3.3BMM
Availability: InStock

new-10%

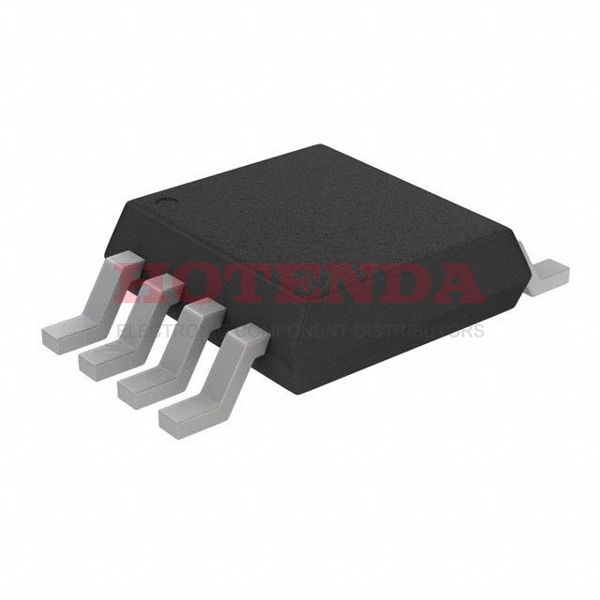

MIC5236-3.3BMM

Manufacturer part number:MIC5236-3.3BMM

Manufacturer:Microchip Technology

Description:Enable Fixed 0.65 mm MIC5236-3.3 PMIC -- Series 8 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Case Package:SOT-23

Datasheet:MIC5236-3.3BMM Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Surface Mount	YES
Supplier Device Package	8-MSOP
Number of Terminals	8
Package	Tube
Base Product Number	MIC5236-3.3
Mfr	Microchip Technology
Product Status	Discontinued at Digi-Key
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tube
Series	--
JESD-609 Code	e0
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn85Pb15)
HTS Code	8542.39.00.01
Subcategory	Other Regulators
Technology	BIPOLAR
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	240
Number of Functions	1
Terminal Pitch	0.65 mm
Reach Compliance Code	not_compliant
Base Part Number	MIC5236-3.3
Pin Count	8
JESD-30 Code	R-PDSO-G8
Current - Supply (Max)	5mA
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	30V
Output Type	Fixed
Output Configuration	Positive
Current - Output	150mA
Control Features	Enable
Voltage - Output (Min/Fixed)	3.3V
Number of Regulators	1
Protection Features	Load Dump, Over Current, Over Temperature, Over Voltage, Reverse Polarity
Current - Quiescent (Iq)	30μA
Voltage Dropout (Max)	0.5V @ 150mA
PSRR	--
Seated Height-Max	1.09 mm
Dropout Voltage1-Nom	0.3 V
Output Voltage1-Max	3.366 V
Output Voltage1-Min	3.234 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	2%
Output Current1-Max	0.15 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.5 V
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	60 V
Adjustability	FIXED
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	3.3 V
Width	2.97 mm
Length	3 mm
RoHS Status	Non-RoHS Compliant

MIC5236-3.3BMM Product Details

MIC5236-3.3BMM Overview

Tube cases are used for delivery. The Liner regulator IC is packaged in 8-TSSOP, 8-MSOP (0.118, 3.00mm Width) case. Fixed is the output type of the Voltage Regulator IC. As part of this electrical component, 1 regulators are implemented. Variations are made to the Surface Mount operating temperature range by the Voltage Regulator IC. Default settings are set to -40°C~125°C degrees. There is a Positive configured as the output function for this IC regulator. There is a current output of 150mA from this regulator IC. There are a total of 8 pins on this board. There are 1 outputs total on this voltage regulator IC in order to ensure that prompt and sufficient performance is achieved. For your information, the basic part number for this regulator IC is MIC5236-3.3. In this case, we have a typical Other Regulators component. There is one type of regulator for this device, which is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR. This IC regulator is a part of the -- Series of devices.
