Name: MIC5211-2.8BM6-TR
Brand: Microchip Technology
SKU: MIC5211-2.8BM6-TR
Availability: InStock

new-10%

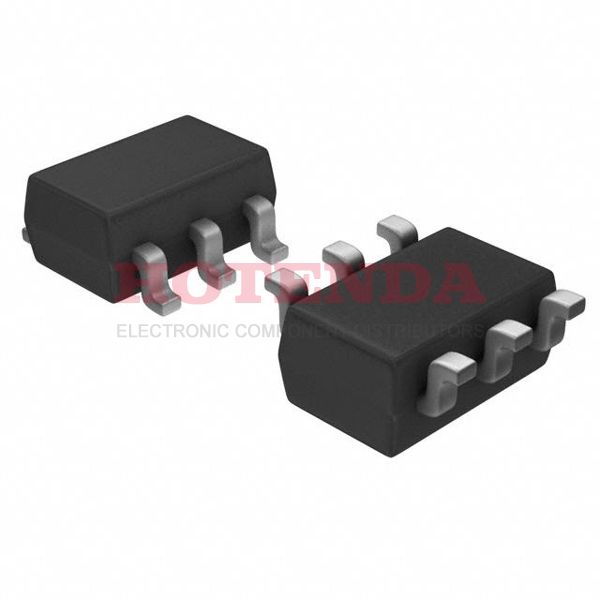

MIC5211-2.8BM6-TR

Manufacturer part number:MIC5211-2.8BM6-TR

Manufacturer:Microchip Technology

Description:Enable Fixed 0.95 mm MIC5211 PMIC -- Series 6 SOT-23-6

Case Package:SOT-23

Datasheet:MIC5211-2.8BM6-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	SOT-23-6
Surface Mount	YES
Supplier Device Package	SOT-23-6
Number of Terminals	6
Package	Tape & Reel (TR)
Base Product Number	MIC5211
Mfr	Microchip Technology
Product Status	Discontinued at Digi-Key
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	--
JESD-609 Code	e0
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn85Pb15)
HTS Code	8542.39.00.01
Terminal Position	DUAL
Terminal Form	GULL WING
Number of Functions	1
Terminal Pitch	0.95 mm
Reach Compliance Code	compliant
Base Part Number	MIC5211
Pin Count	6
JESD-30 Code	R-PDSO-G6
Current - Supply (Max)	1.2mA
Number of Outputs	2
Qualification Status	Not Qualified
Voltage - Input (Max)	16V
Output Type	Fixed
Output Configuration	Positive
Current - Output	80mA, 80mA
Control Features	Enable
Voltage - Output (Min/Fixed)	2.8V 2.8V
Number of Regulators	2
Protection Features	Over Current, Over Temperature, Reverse Polarity
Current - Quiescent (Iq)	450μA
Voltage Dropout (Max)	0.5V @ 50mA 0.5V @ 50mA
PSRR	--
Seated Height-Max	1 mm
Output Voltage1-Max	2.912 V
Output Voltage1-Min	2.688 V
Regulator Type	FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR
Output Current1-Max	0.08 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.5 V
Operating Temperature TJ-Max	125 °C
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	2.8 V
Output Voltage2-Max	2.912 V
Output Voltage2-Min	2.688 V
Output Current2-Max	0.08 A
Dropout Voltage2-Max	0.5 V
Width	1.6 mm
Length	2.9 mm
RoHS Status	Non-RoHS Compliant

MIC5211-2.8BM6-TR Product Details

MIC5211-2.8BM6-TR Overview

The package is delivered in a Tape & Reel (TR) case. In order to package the IC voltage regulator, a SOT-23-6 case is used. This IC Regulator has a type of output called Fixed. There are 2 regulators implemented in this electroic component. Surface Mount can be adjusted in the Linear IC in order to vary the temperature range over which Linear Regulator operates. The IC voltage regulator must be maintained at -40°C~125°C degrees for it to function. As you can see, this regulator's output function is configured to be Positive. At present, it can produce an output of up to 80mA, 80mA. A total of 6 pins are located on this chip, making it the size of a standard chip. The regulator has a total of 2 outputs to make sure that it delivers prompt, sufficient outputs. For your information, part number MIC5211 is the basic part number for this voltage regulator IC. As far as the regulator type, it is a FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR type. The -- Series is a series of products made by D-Link.
