Name: MIC5210-3.6BMM
Brand: Microchip Technology
SKU: MIC5210-3.6BMM
Availability: InStock

new-10%

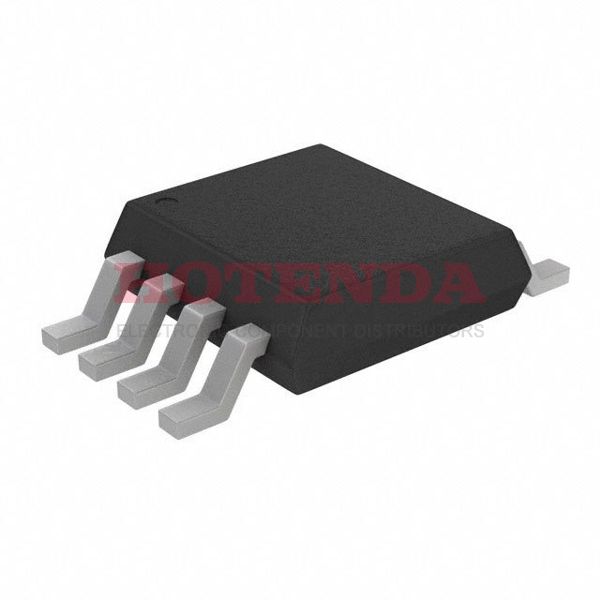

MIC5210-3.6BMM

Manufacturer part number:MIC5210-3.6BMM

Manufacturer:Microchip Technology

Description:Enable Fixed 0.65 mm MIC5210 PMIC -- Series 8 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Case Package:SOT-23

Datasheet:MIC5210-3.6BMM Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Surface Mount	YES
Supplier Device Package	8-MSOP
Number of Terminals	8
Package	Tube
Base Product Number	MIC5210
Mfr	Microchip Technology
Product Status	Discontinued at Digi-Key
Manufacturer	Microchip Technology Inc
Package Shape	RECTANGULAR
Operating Temperature	-40°C~125°C
Packaging	Tube
Series	--
JESD-609 Code	e0
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn85Pb15)
HTS Code	8542.39.00.01
Subcategory	Other Regulators
Technology	BIPOLAR
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	240
Number of Functions	1
Terminal Pitch	0.65 mm
Reach Compliance Code	not_compliant
Base Part Number	MIC5210
Pin Count	8
JESD-30 Code	R-PDSO-G8
Current - Supply (Max)	2.5mA
Number of Outputs	2
Qualification Status	Not Qualified
Voltage - Input (Max)	16V
Output Type	Fixed
Output Configuration	Positive
Current - Output	150mA, 150mA
Control Features	Enable
Voltage - Output (Min/Fixed)	3.6V 3.6V
Number of Regulators	2
Protection Features	Over Current, Over Temperature, Reverse Polarity
Current - Quiescent (Iq)	150μA
Voltage Dropout (Max)	0.35V @ 150mA 0.35V @ 150mA
PSRR	75dB (100Hz)
Seated Height-Max	1.09 mm
Dropout Voltage1-Nom	0.17 V
Output Voltage1-Max	3.672 V
Output Voltage1-Min	3.528 V
Regulator Type	FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	2%
Output Current1-Max	0.15 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.35 V
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	20 V
Adjustability	FIXED
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	3.6 V
Output Voltage2-Max	3.672 V
Output Voltage2-Min	3.528 V
Output Current2-Max	0.15 A
Dropout Voltage2-Max	0.35 V
Length	3 mm
Width	2.97 mm
RoHS Status	Non-RoHS Compliant

MIC5210-3.6BMM Product Details

MIC5210-3.6BMM Overview

The package is delivered in a Tube case. In order to package the IC voltage regulator, a 8-TSSOP, 8-MSOP (0.118, 3.00mm Width) case is used. This IC Regulator has a type of output called Fixed. There are 2 regulators implemented in this electroic component. Surface Mount can be adjusted in the Linear IC in order to vary the temperature range over which Linear Regulator operates. The IC voltage regulator must be maintained at -40°C~125°C degrees for it to function. As you can see, this regulator's output function is configured to be Positive. At present, it can produce an output of up to 150mA, 150mA. As you can see, the regulator IC has a total of 8 pins. The regulator has a total of 2 outputs to make sure that it delivers prompt, sufficient outputs. For your information, part number MIC5210 is the basic part number for this voltage regulator IC. As you can see, this regulator IC represents a typical Other Regulators component. As far as the regulator type, it is a FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR type. The -- Series is a series of products made by D-Link.
