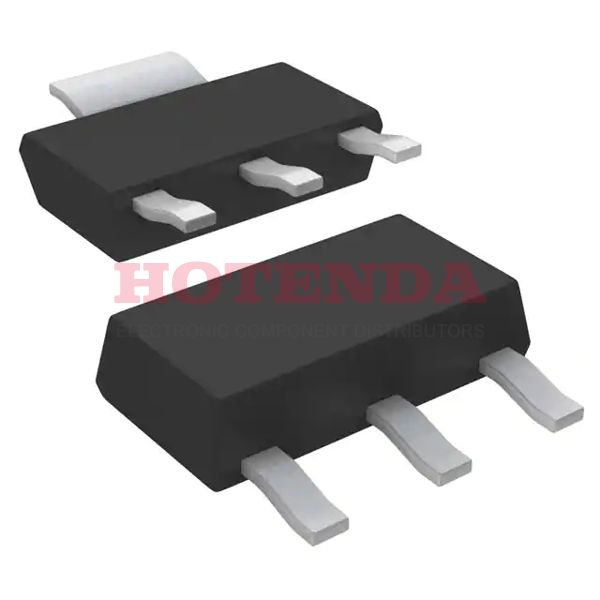

Name: MIC5209-5.0BS TR
Brand: Microchip Technology
SKU: MIC5209-5.0BS TR
Availability: InStock

new-10%

MIC5209-5.0BS TR

Manufacturer part number:MIC5209-5.0BS TR

Manufacturer:Microchip Technology

Description:-- Fixed 2.3 mm MIC5209 PMIC -- Series 4 TO-261-4, TO-261AA

Case Package:SOT-23

Datasheet:MIC5209-5.0BS TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	TO-261-4, TO-261AA
Surface Mount	YES
Supplier Device Package	SOT-223-3
Number of Terminals	4
Package	Tape & Reel (TR)
Base Product Number	MIC5209
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	--
JESD-609 Code	e0
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn85Pb15)
HTS Code	8542.39.00.01
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	240
Number of Functions	1
Terminal Pitch	2.3 mm
Reach Compliance Code	compliant
Base Part Number	MIC5209
Pin Count	4
JESD-30 Code	R-PDSO-G4
Current - Supply (Max)	25mA
Qualification Status	Not Qualified
Voltage - Input (Max)	16V
Output Type	Fixed
Output Configuration	Positive
Current - Output	500mA
Control Features	--
Voltage - Output (Min/Fixed)	5V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Reverse Polarity
Current - Quiescent (Iq)	170μA
Voltage Dropout (Max)	0.6V @ 500mA
PSRR	75dB (120Hz)
Seated Height-Max	1.8 mm
Output Voltage1-Max	5.1 V
Output Voltage1-Min	4.9 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	0.5 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.6 V
Operating Temperature TJ-Max	125 °C
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	5 V
Width	3.5 mm
Length	6.5 mm
RoHS Status	Non-RoHS Compliant

MIC5209-5.0BS TR Product Details

MIC5209-5.0BS TR Overview

An Tape & Reel (TR) case is included with the delivery. There is a TO-261-4, TO-261AA case with the integrated voltage regulator. In terms of output type, Fixed is what the Regulator IC produces. The electronic component implements 1 Voltage regulator ICs. IC Regulator is possible to alter the range of the operating temperature of Surface Mount in the device. In order for this IC voltage regulator to operate, the temperature has to be kept at -40°C~125°C degrees. In this case, the output function that is configured for this regulator IC is Positive. There is an 500mAmp current output on this voltage regulator IC. It has a total of 4 pins on IC voltage regulator. It is MIC5209 for this regulator, just for your information. It is worth mentioning that the regulator type for this regulator IC is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR. This regulator IC is a part of the -- Series.
