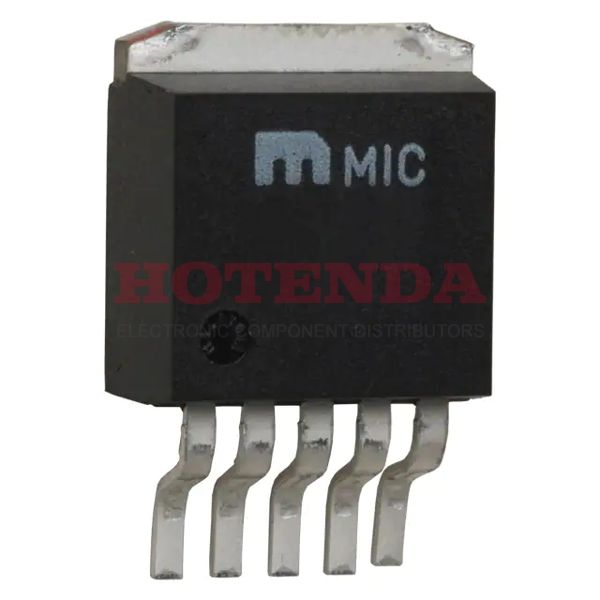

Name: MIC5209-3.6BU TR
Brand: Microchip Technology
SKU: MIC5209-3.6BU TR
Availability: InStock

new-10%

MIC5209-3.6BU TR

Manufacturer part number:MIC5209-3.6BU TR

Manufacturer:Microchip Technology

Description:Enable Fixed 1.7 mm MIC5209 PMIC -- Series 4 TO-263-6, D2Pak (5 Leads + Tab), TO-263BA

Case Package:SOT-23

Datasheet:MIC5209-3.6BU TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Surface Mount	YES
Supplier Device Package	TO-263-5
Number of Terminals	5
Package	Tape & Reel (TR)
Base Product Number	MIC5209
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	--
JESD-609 Code	e0
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn85Pb15)
HTS Code	8542.39.00.01
Terminal Position	SINGLE
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	240
Number of Functions	1
Terminal Pitch	1.7 mm
Reach Compliance Code	compliant
Base Part Number	MIC5209
Pin Count	4
JESD-30 Code	R-PSSO-G5
Current - Supply (Max)	25mA
Qualification Status	Not Qualified
Voltage - Input (Max)	16V
Output Type	Fixed
Output Configuration	Positive
Current - Output	500mA
Control Features	Enable
Voltage - Output (Min/Fixed)	3.6V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Reverse Polarity
Current - Quiescent (Iq)	170μA
Voltage Dropout (Max)	0.6V @ 500mA
PSRR	75dB (120Hz)
Seated Height-Max	4.902 mm
Output Voltage1-Max	3.672 V
Output Voltage1-Min	3.528 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	0.5 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.6 V
Operating Temperature TJ-Max	125 °C
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	3.6 V
Width	8.7755 mm
Length	10.363 mm
RoHS Status	Non-RoHS Compliant

MIC5209-3.6BU TR Product Details

MIC5209-3.6BU TR Overview

Tape & Reel (TR) cases are used for delivery. The Liner regulator IC is packaged in TO-263-6, D2Pak (5 Leads + Tab), TO-263BA case. Fixed is the output type of the Voltage Regulator IC. As part of this electrical component, 1 regulators are implemented. Variations are made to the Surface Mount operating temperature range by the Voltage Regulator IC. Default settings are set to -40°C~125°C degrees. There is a Positive configured as the output function for this IC regulator. There is a current output of 500mA from this regulator IC. There are a total of 4 pins on this board. For your information, the basic part number for this regulator IC is MIC5209. There is one type of regulator for this device, which is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR. This IC regulator is a part of the -- Series of devices.
