Name: MIC5206-3.3BMM-TR
Brand: Microchip Technology
SKU: MIC5206-3.3BMM-TR
Availability: InStock

new-10%

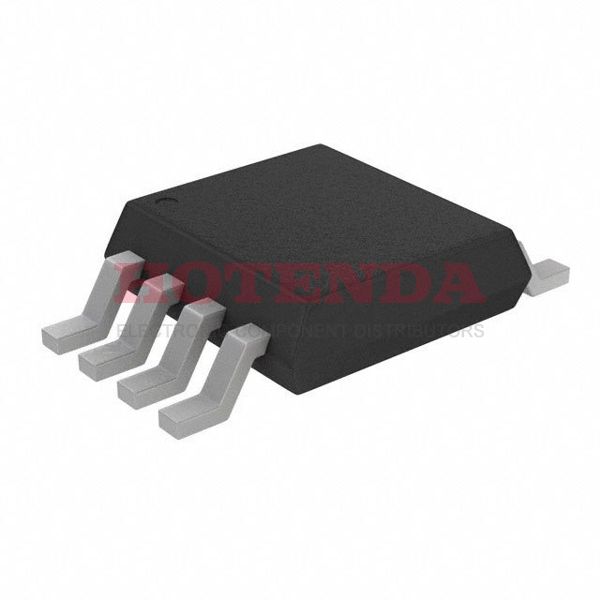

MIC5206-3.3BMM-TR

Manufacturer part number:MIC5206-3.3BMM-TR

Manufacturer:Microchip Technology

Description:Enable, Error Flag Fixed 0.65 mm MIC5206 PMIC -- Series 8 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Case Package:SOT-23

Datasheet:MIC5206-3.3BMM-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Surface Mount	YES
Supplier Device Package	8-MSOP
Number of Terminals	8
Package	Tape & Reel (TR)
Base Product Number	MIC5206
Mfr	Microchip Technology
Product Status	Discontinued at Digi-Key
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	--
JESD-609 Code	e0
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn85Pb15)
HTS Code	8542.39.00.01
Terminal Position	DUAL
Terminal Form	GULL WING
Number of Functions	1
Terminal Pitch	0.65 mm
Reach Compliance Code	compliant
Base Part Number	MIC5206
Pin Count	8
JESD-30 Code	S-PDSO-G8
Current - Supply (Max)	2.5mA
Qualification Status	Not Qualified
Voltage - Input (Max)	16V
Output Type	Fixed
Output Configuration	Positive
Current - Output	150mA
Control Features	Enable, Error Flag
Voltage - Output (Min/Fixed)	3.3V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Reverse Polarity
Current - Quiescent (Iq)	150μA
Voltage Dropout (Max)	0.35V @ 150mA
PSRR	--
Seated Height-Max	1.1 mm
Output Voltage1-Max	3.366 V
Output Voltage1-Min	3.234 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	0.15 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.35 V
Operating Temperature TJ-Max	125 °C
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	3.3 V
Width	3 mm
Length	3 mm
RoHS Status	Non-RoHS Compliant

MIC5206-3.3BMM-TR Product Details

MIC5206-3.3BMM-TR Overview

This Voltage Regulator IC comes inTape & Reel (TR) packaging. This battery regulator is contained in a 8-TSSOP, 8-MSOP (0.118, 3.00mm Width) package. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 150mA. IC voltage regulator has a sum of 8 pins. FYI, the basic part number for this IC regulator is MIC5206. The regulator type for this IC regulator is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR. It is part of the -- Series.
