Name: MIC5200-3.3YS
Brand: Microchip Technology
SKU: MIC5200-3.3YS
Price: 1.39000 USD
Availability: InStock

new-10%

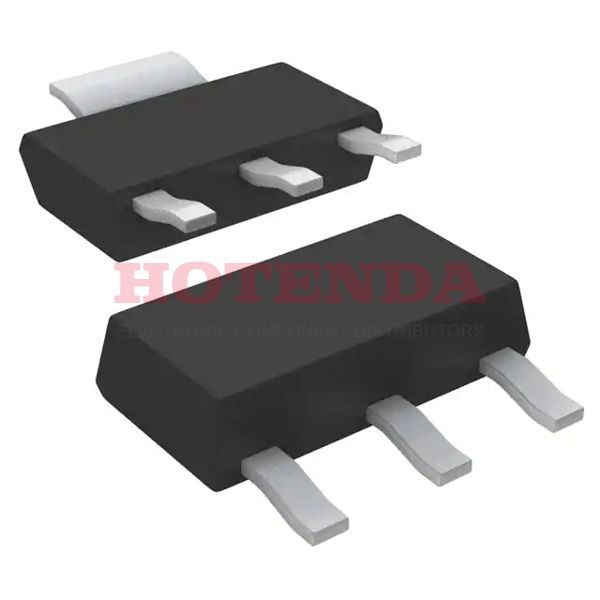

MIC5200-3.3YS

Manufacturer part number:MIC5200-3.3YS

Manufacturer:Microchip Technology

Description:-- Fixed 2.31 mm MIC5200 PMIC -- Series 3 TO-261-4, TO-261AA

Case Package:SOT-23

Datasheet:MIC5200-3.3YS Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-261-4, TO-261AA
Surface Mount	YES
Number of Pins	3
Supplier Device Package	SOT-223-3
Number of Terminals	4
Mounting Style	SMD/SMT
Supplier Package	SOT-223
Junction to Case	15 °C/W
Input Voltage Range	2.5, 26 V
Maximum Input Voltage	26 V
Mounting	Surface Mount
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Package	Tube
Base Product Number	MIC5200
Mfr	Microchip Technology
Product Status	Active
Package Shape	RECTANGULAR
Operating Temperature	-40°C~125°C
Packaging	Tube
Series	--
Tolerance	1 %
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
HTS Code	8542.39.00.01
Subcategory	PMIC - Power Management ICs
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	2.31 mm
Reach Compliance Code	not_compliant
Base Part Number	MIC5200
Pin Count	3
JESD-30 Code	R-PDSO-G4
Function	LDO
Current - Supply (Max)	1.5mA
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	26V
Output Voltage	3.3V
Output Type	Fixed
Max Output Current	100mA
Polarity	Positive
Output Configuration	Positive
Output Current	0.1 A
Current - Output	100mA
Quiescent Current	10 nA
Control Features	--
Voltage - Output (Min/Fixed)	3.3V
Number of Regulators	1
Min Input Voltage	2.5V
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	350μA
Voltage Dropout (Max)	0.35V @ 100mA
Max Input Voltage	26V
PSRR	--
Seated Height-Max	1.8 mm
Dropout Voltage	230mV
Product Type	LDO Voltage Regulators
Min Output Voltage	3.3V
Power Supply Rejection Ratio (PSRR)	70dB
Output Voltage1-Max	3.366 V
Output Voltage1-Min	3.234 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	0.1 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.35 V
Min Current Limit	100mA
Screening Level	Extended Industrial
Operating Temperature TJ-Max	125 °C
Nominal Output Voltage	3.3V
Output Voltage Accuracy	1 %
Line Regulation	0.1 %
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	3.3 V
Load Regulation	0.16 %
Product Category	LDO Voltage Regulators
Width	3.505 mm
Length	6.5 mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MIC5200-3.3YS Product Details

MIC5200-3.3YS Overview

The package is delivered in a Tube case. In order to package the IC voltage regulator, a TO-261-4, TO-261AA case is used. This IC Regulator has a type of output called Fixed. There are 1 regulators implemented in this electroic component. Surface Mount can be adjusted in the Linear IC in order to vary the temperature range over which Linear Regulator operates. The IC voltage regulator must be maintained at -40°C~125°C degrees for it to function. As you can see, this regulator's output function is configured to be Positive. At present, it can produce an output of up to 100mA. As you can see, the regulator IC has a total of 3 pins. The regulator has a total of 1 outputs to make sure that it delivers prompt, sufficient outputs. A dropout voltage of 10 volts is what makes it a dropout voltage. Depending on the chip, 3 pins may be available. For your information, part number MIC5200 is the basic part number for this voltage regulator IC. As you can see, this regulator IC represents a typical PMIC - Power Management ICs component. As far as the regulator type, it is a FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR type. There is a maximum output current of 100mA for this regulator to meet the operational requirements. It operates in the 10 nA Quiescent Current state. The -- Series is a series of products made by D-Link. As a general rule, it is recommended that you use the IC voltage regulator when temperatures are below 125°C degrees Celsius. At the lowest operating temperature that can be reached by the chip, it is -40°C. In regards to tolerance, this voltage regulator IC has an 1 % tolerance, which is quite low.
