Name: MIC47100-10YMME-TR
Brand: Microchip Technology
SKU: MIC47100-10YMME-TR
Price: 2.04000 USD
Availability: InStock

new-10%

MIC47100-10YMME-TR

Manufacturer part number:MIC47100-10YMME-TR

Manufacturer:Microchip Technology

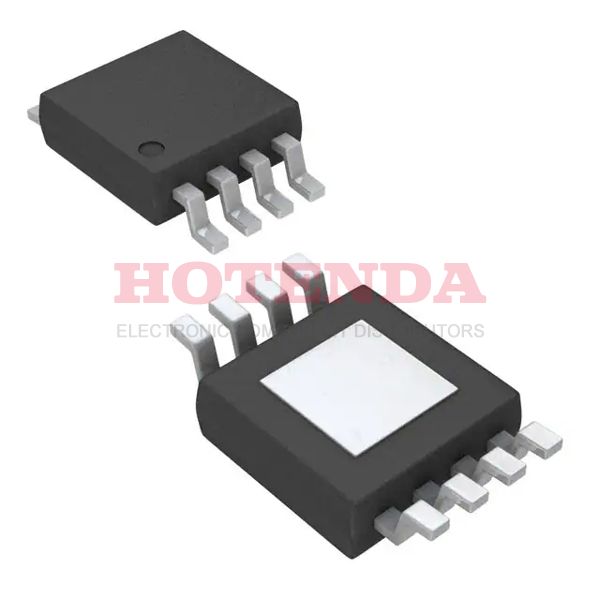

Description:Enable Fixed 0.65 mm MIC47100 PMIC -- Series 8 8-TSSOP, 8-MSOP (0.118, 3.00mm Width) Exposed Pad

Case Package:SOT-23

Datasheet:MIC47100-10YMME-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-TSSOP, 8-MSOP (0.118, 3.00mm Width) Exposed Pad
Surface Mount	YES
Number of Pins	8
Supplier Device Package	8-MSOP-EP
Number of Terminals	8
Mounting Style	SMD/SMT
Supplier Package	MSOP
Input Voltage Range	1, 3.6 V
Maximum Input Voltage	3.6 V
Junction to Ambient	64 °C/W
Mounting	Surface Mount
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Package	Tape & Reel (TR)
Base Product Number	MIC47100
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Published	2008
Series	--
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn) - annealed
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
HTS Code	8542.39.00.01
Subcategory	PMIC - Power Management ICs
Packing Method	TR
Technology	NMOS
Terminal Position	DUAL
Terminal Form	GULL WING
Number of Functions	1
Terminal Pitch	0.65 mm
Reach Compliance Code	compliant
Base Part Number	MIC47100
Pin Count	8
JESD-30 Code	S-PDSO-G8
Function	LDO
Number of Outputs	1
Voltage - Input (Max)	3.6V
Output Voltage	1V
Output Type	Fixed
Max Output Current	1A
Polarity	Positive
Output Configuration	Positive
Output Current	1 A
Current - Output	1A
Control Features	Enable
Voltage - Output (Min/Fixed)	1V
Number of Regulators	1
Min Input Voltage	1V
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Current - Quiescent (Iq)	6μA
Voltage Dropout (Max)	0.25V @ 1A
Max Input Voltage	3.6V
PSRR	80dB ~ 45dB (1kHz ~ 500kHz)
Seated Height-Max	1.04 mm
Dropout Voltage	80mV
Product Type	LDO Voltage Regulators
Dropout Voltage1-Nom	0.08 V
Min Output Voltage	1V
Output Voltage1-Max	1.02 V
Output Voltage1-Min	0.98 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	2%
Output Current1-Max	1 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.25 V
Min Current Limit	1.1A
Screening Level	Extended Industrial
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	4 V
Adjustability	FIXED
Line Regulation	0.05 %/V
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	1 V
Load Regulation	0.5 %
Product Category	LDO Voltage Regulators
Width	3 mm
Length	3 mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MIC47100-10YMME-TR Product Details
