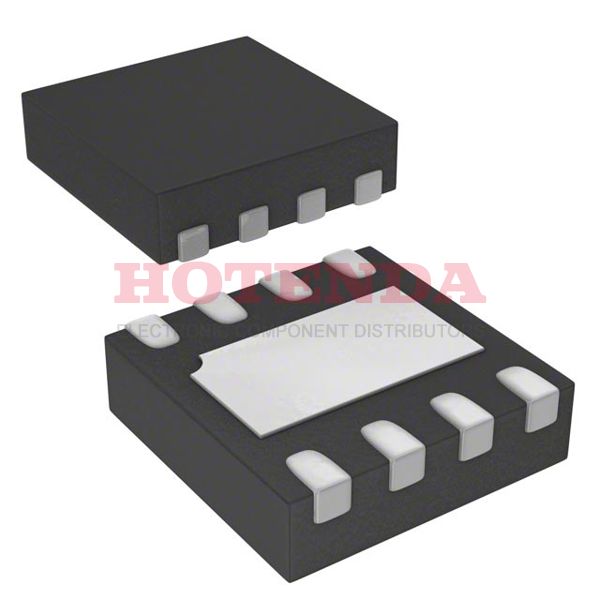

Name: MIC47053YMT-T5
Brand: Microchip Technology
SKU: MIC47053YMT-T5
Availability: InStock

new-10%

MIC47053YMT-T5

Manufacturer part number:MIC47053YMT-T5

Manufacturer:Microchip Technology

Description:Enable, Power Good Adjustable 0.5 mm MIC47053 PMIC -- Series 8-UFDFN Exposed Pad

Case Package:SOT-23

Datasheet:MIC47053YMT-T5 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-UFDFN Exposed Pad
Surface Mount	YES
Number of Pins	8
Supplier Device Package	8-TDFN (2x2)
Number of Terminals	8
Mounting Style	SMD/SMT
Package	Tape & Reel (TR)
Base Product Number	MIC47053
Mfr	Microchip Technology
Product Status	Active
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Package Shape	SQUARE
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Published	2016
Series	--
JESD-609 Code	e4
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
HTS Code	8542.39.00.01
Subcategory	PMIC - Power Management ICs
Technology	CMOS
Terminal Position	DUAL
Terminal Form	NO LEAD
Number of Functions	1
Terminal Pitch	0.5 mm
Reach Compliance Code	compliant
Base Part Number	MIC47053
JESD-30 Code	S-PDSO-N8
Number of Outputs	1
Voltage - Input (Max)	3.6V
Output Voltage	3.4V
Output Type	Adjustable
Max Output Current	500mA
Polarity	Positive
Output Configuration	Positive
Output Current	500 mA
Current - Output	500mA
Control Features	Enable, Power Good
Accuracy	2 %
Max Output Voltage	3.4V
Voltage - Output (Min/Fixed)	0.4V
Number of Regulators	1
Min Input Voltage	1V
Protection Features	Over Temperature, Under Voltage Lockout (UVLO)
Current - Quiescent (Iq)	15μA
Voltage Dropout (Max)	0.12V @ 500mA
Max Input Voltage	3.6V
PSRR	47dB ~ 35dB (10kHz ~ 100kHz)
Reference Voltage	400mV
Seated Height-Max	0.6 mm
Dropout Voltage	49mV
Product Type	LDO Voltage Regulators
Min Output Voltage	400mV
Power Supply Rejection Ratio (PSRR)	47dB
Output Voltage1-Max	3.4 V
Output Voltage1-Min	0.4 V
Regulator Type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	0.5 A
Voltage - Output (Max)	3.4V
Dropout Voltage1-Max	0.12 V
Operating Temperature TJ-Max	125 °C
Line Regulation	0.1 %/V
Operating Temperature TJ-Min	-40 °C
Load Regulation	0.2 %
Product Category	LDO Voltage Regulators
Output Voltage Range	400 mV to 3.4 V
Length	2mm
Width	2mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

MIC47053YMT-T5 Product Details

MIC47053YMT-T5 Overview

This Voltage Regulator IC comes inTape & Reel (TR) packaging. This battery regulator is contained in a 8-UFDFN Exposed Pad package. The IC chip's output type is Adjustable. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 500mA. To ensure prompt, sufficient performance, this part features 1 outputs in total. Its dropout voltage is 10 volts. The component's pin number remains 8. FYI, the basic part number for this IC regulator is MIC47053. This regulator IC is a typical PMIC - Power Management ICs. The regulator type for this IC regulator is ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR. It works in 500mA output current at mostIt is part of the -- Series. The regulator operates with a maximum operating temperature of 125°C. At the very least, the voltage regulator IC works with a -40°C operating temperature.
