Name: MIC37302BU TR
Brand: Microchip Technology
SKU: MIC37302BU TR
Availability: InStock

new-10%

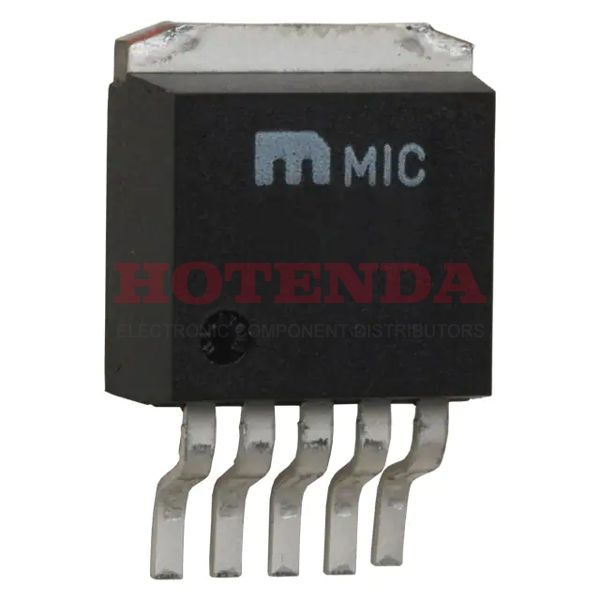

MIC37302BU TR

Manufacturer part number:MIC37302BU TR

Manufacturer:Microchip Technology

Description:Enable Adjustable 1.7 mm MIC37302 PMIC -- Series TO-263-6, D2Pak (5 Leads + Tab), TO-263BA

Case Package:SOT-23

Datasheet:MIC37302BU TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Surface Mount	YES
Supplier Device Package	TO-263-5
Number of Terminals	5
Package	Tape & Reel (TR)
Base Product Number	MIC37302
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	--
JESD-609 Code	e0
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Terminal Finish	Tin/Lead (Sn85Pb15)
Subcategory	Other Regulators
Packing Method	TR
Technology	BIPOLAR
Terminal Position	SINGLE
Terminal Form	GULL WING
Number of Functions	1
Terminal Pitch	1.7 mm
Reach Compliance Code	not_compliant
Base Part Number	MIC37302
JESD-30 Code	R-PSSO-G5
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	6V
Output Type	Adjustable
Output Configuration	Positive
Current - Output	3A
Control Features	Enable
Voltage - Output (Min/Fixed)	1.24V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Reverse Polarity
Voltage Dropout (Max)	--
PSRR	--
Seated Height-Max	4.902 mm
Dropout Voltage1-Nom	0.3 V
Output Voltage1-Max	5.5 V
Output Voltage1-Min	1.24 V
Regulator Type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	3 A
Voltage - Output (Max)	5.5V
Dropout Voltage1-Max	0.5 V
Operating Temperature TJ-Max	125 °C
Adjustability	ADJUSTABLE
Load Regulation-Max(%)	1%
Line Regulation-Max (%/V)	0.13
Operating Temperature TJ-Min	-40 °C
Input-Output Voltage Differential-Max	4.76 V
Input-Output Voltage Differential-Min	1 V
Width	8.7755 mm
Length	10.363 mm
RoHS Status	Non-RoHS Compliant

MIC37302BU TR Product Details

MIC37302BU TR Overview

Deliveries are in Tape & Reel (TR) cases. The package is in a TO-263-6, D2Pak (5 Leads + Tab), TO-263BA case. In this case, Adjustable represents the output type of the Voltage Regulated IC. This part implements 1 regulator ICs, which can be found in the following table. Regulator IC varies the range of Surface Mount operating temperatures. The Voltage Regulated IC operates at a temperature of -40°C~125°C degrees, which is its operating temperature. It is configured for output function Positive on this regulator. There is an output current of 3A on this regulator. This IC regulator has a total of 1 outputs, which ensures a rapid, adequate performance when in use. As an FYI, this IC voltage regulator has the basic part number MIC37302. An example of this type of component would be a Other Regulators component. A ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR regulator is the type of regulator that is used for this device. Packing the voltage regulator IC in this way is called TR packing. As part of the -- Series, this IC voltage regulator belongs to that category.
