Name: MIC37302BU
Brand: Microchip Technology
SKU: MIC37302BU
Availability: InStock

new-10%

MIC37302BU

Manufacturer part number:MIC37302BU

Manufacturer:Microchip Technology

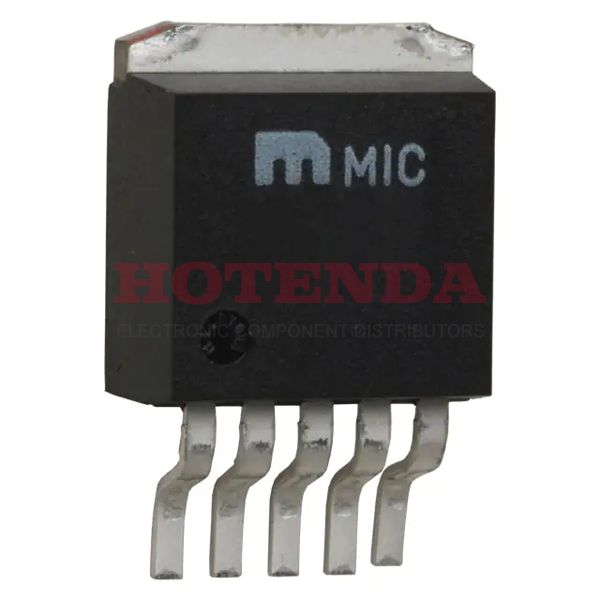

Description:Enable Adjustable 1.7 mm MIC37302 PMIC -- Series 4 TO-263-6, D2Pak (5 Leads + Tab), TO-263BA

Case Package:SOT-23

Datasheet:MIC37302BU Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Surface Mount	YES
Supplier Device Package	TO-263-5
Number of Terminals	5
Package	Tube
Base Product Number	MIC37302
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tube
Series	--
JESD-609 Code	e0
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn85Pb15)
HTS Code	8542.39.00.01
Subcategory	Other Regulators
Technology	BIPOLAR
Terminal Position	SINGLE
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	240
Number of Functions	1
Terminal Pitch	1.7 mm
Reach Compliance Code	not_compliant
Base Part Number	MIC37302
Pin Count	4
JESD-30 Code	R-PSSO-G5
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	6V
Output Type	Adjustable
Output Configuration	Positive
Current - Output	3A
Control Features	Enable
Voltage - Output (Min/Fixed)	1.24V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Reverse Polarity
Voltage Dropout (Max)	--
PSRR	--
Seated Height-Max	4.902 mm
Dropout Voltage1-Nom	0.3 V
Output Voltage1-Max	5.5 V
Output Voltage1-Min	1.24 V
Regulator Type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	3 A
Voltage - Output (Max)	5.5V
Dropout Voltage1-Max	0.5 V
Operating Temperature TJ-Max	125 °C
Adjustability	ADJUSTABLE
Load Regulation-Max(%)	1%
Line Regulation-Max (%/V)	0.13
Operating Temperature TJ-Min	-40 °C
Input-Output Voltage Differential-Max	4.76 V
Input-Output Voltage Differential-Min	1 V
Width	8.7755 mm
Length	10.363 mm
RoHS Status	Non-RoHS Compliant

MIC37302BU Product Details

MIC37302BU Overview

In the case of Tube cases, the regulater IC is delivered. Packaging of the Liner regulator IC takes the form of a TO-263-6, D2Pak (5 Leads + Tab), TO-263BA case. Adjustable is the Voltage Regulator Chip's output type. Linear IC consists of 1 battery regulators. The range of operating temperatures of Surface Mount are programmable in the Voltage Regulator Chip, so that the temperature can be varied as desired. Keeping the temperature at -40°C~125°C degrees is necessary for this regulator to function. There is an output function of Positive configured for this regulator. Currently, 3A are being output by it at the moment. The sum of the pins in this unit is 4. The part includes 1 outputs in order to ensure that the voltage regulator IC performs effectively and in a timely manner. Here's the basic part number for this IC regulator: MIC37302. This voltage regulator IC is what is known as a standard Other Regulators component. This device has a regulator type called ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR, which means it operates on a DC voltage. The phone is a member of the -- Series.
