Name: MIC37301-1.5WR-TR
Brand: Microchip Technology
SKU: MIC37301-1.5WR-TR
Price: 2.82000 USD
Availability: InStock

new-10%

MIC37301-1.5WR-TR

Manufacturer part number:MIC37301-1.5WR-TR

Manufacturer:Microchip Technology

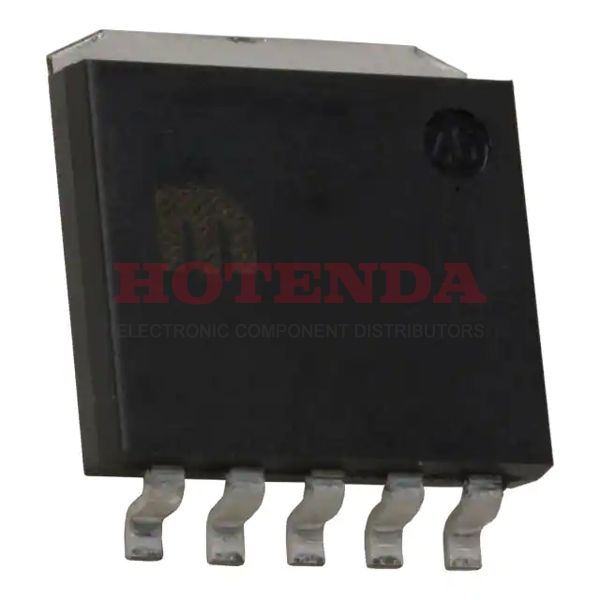

Description:Enable Fixed 1.7 mm MIC37301-1.5 PMIC -- Series 5 SPak-5 (5 leads + Tab)

Case Package:SOT-23

Datasheet:MIC37301-1.5WR-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SPak-5 (5 leads + Tab)
Surface Mount	YES
Number of Pins	5
Supplier Device Package	S-PAK-5
Number of Terminals	5
Mounting Style	SMD/SMT
Supplier Package	S-PAK
Junction to Case	5.5 °C/W
Input Voltage Range	2.25, 6 V
Maximum Input Voltage	6 V
Mounting	Surface Mount
Package	Tape & Reel (TR)
Base Product Number	MIC37301
Mfr	Microchip Technology
Product Status	Active
Manufacturer	Microchip
Brand	Microchip Technology
Package Shape	RECTANGULAR
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	--
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn) - annealed
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
HTS Code	8542.39.00.01
Subcategory	PMIC - Power Management ICs
Packing Method	TR
Technology	BIPOLAR
Terminal Position	SINGLE
Terminal Form	GULL WING
Number of Functions	1
Terminal Pitch	1.7 mm
Reach Compliance Code	not_compliant
Base Part Number	MIC37301-1.5
Pin Count	5
JESD-30 Code	R-PSSO-G5
Function	LDO
Current - Supply (Max)	50 mA
Number of Outputs	1
Voltage - Input (Max)	6V
Output Voltage	1.5V
Output Type	Fixed
Max Output Current	3A
Polarity	Positive
Output Configuration	Positive
Output Current	3 A
Current - Output	3A
Quiescent Current	40mA
Control Features	Enable
Voltage - Output (Min/Fixed)	1.5V
Number of Regulators	1
Min Input Voltage	2.25V
Protection Features	Over Current, Over Temperature, Reverse Polarity
Voltage Dropout (Max)	--
Max Input Voltage	6V
PSRR	--
Reference Voltage	1.252 V
Seated Height-Max	2.16 mm
Product Type	LDO Voltage Regulators
Dropout Voltage1-Nom	0.3 V
Min Output Voltage	1.5V
Output Voltage1-Max	1.53 V
Output Voltage1-Min	1.47 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	2%
Output Current1-Max	3 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.5 V
Screening Level	Extended Industrial
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	6.5 V
Output Voltage Accuracy	1 %
Adjustability	FIXED
Line Regulation	0.5 %
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	1.5 V
Load Regulation	1 %
Product Category	LDO Voltage Regulators
Width	8 mm
Length	9.395 mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MIC37301-1.5WR-TR Product Details

MIC37301-1.5WR-TR Overview

The package is delivered in a Tape & Reel (TR) case. In order to package the IC voltage regulator, a SPak-5 (5 leads + Tab) case is used. This IC Regulator has a type of output called Fixed. There are 1 regulators implemented in this electroic component. Surface Mount can be adjusted in the Linear IC in order to vary the temperature range over which Linear Regulator operates. The IC voltage regulator must be maintained at -40°C~125°C degrees for it to function. As you can see, this regulator's output function is configured to be Positive. At present, it can produce an output of up to 3A. As you can see, the regulator IC has a total of 5 pins. The regulator has a total of 1 outputs to make sure that it delivers prompt, sufficient outputs. Depending on the chip, 5 pins may be available. For your information, part number MIC37301-1.5 is the basic part number for this voltage regulator IC. As you can see, this regulator IC represents a typical PMIC - Power Management ICs component. As far as the regulator type, it is a FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR type. There is a TR way of packing the IC voltage regulators in the box. There is a maximum output current of 3A for this regulator to meet the operational requirements. It operates in the 40mA Quiescent Current state. The -- Series is a series of products made by D-Link. As a general rule, it is recommended that you use the IC voltage regulator when temperatures are below 125°C degrees Celsius. At the lowest operating temperature that can be reached by the chip, it is -40°C.
