Name: MIC37151-3.3WR-TR
Brand: Microchip Technology
SKU: MIC37151-3.3WR-TR
Price: 2.34000 USD
Availability: InStock

new-10%

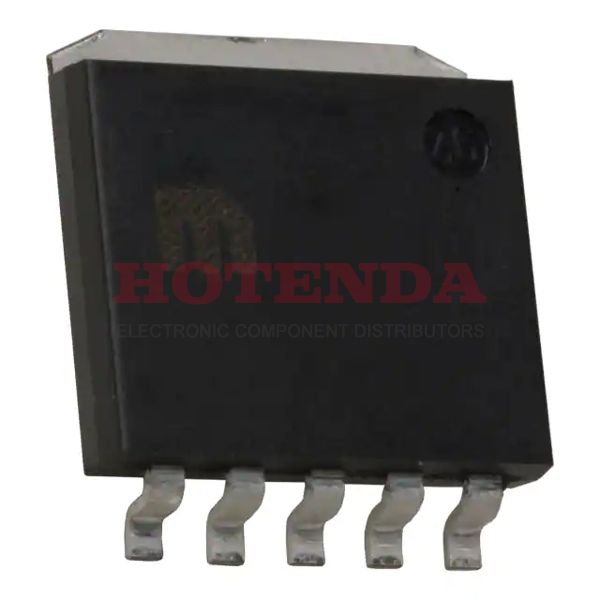

MIC37151-3.3WR-TR

Manufacturer part number:MIC37151-3.3WR-TR

Manufacturer:Microchip Technology

Description:Enable Fixed 1.7 mm MIC37151-3.3 PMIC -- Series 5 SPak-5 (5 leads + Tab)

Case Package:SOT-23

Datasheet:MIC37151-3.3WR-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	13 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SPak-5 (5 leads + Tab)
Surface Mount	YES
Number of Pins	5
Supplier Device Package	S-PAK-5
Number of Terminals	5
Mounting Style	SMD/SMT
Supplier Package	S-PAK
Junction to Case	2 °C/W
Input Voltage Range	2.25, 6 V
Maximum Input Voltage	6 V
Mounting	Surface Mount
Manufacturer	Microchip
Brand	Microchip Technology
Package	Tape & Reel (TR)
Base Product Number	MIC37151
Mfr	Microchip Technology
Product Status	Active
Package Shape	RECTANGULAR
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	--
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn) - annealed
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
HTS Code	8542.39.00.01
Subcategory	PMIC - Power Management ICs
Terminal Position	SINGLE
Terminal Form	GULL WING
Number of Functions	1
Terminal Pitch	1.7 mm
Reach Compliance Code	not_compliant
Base Part Number	MIC37151-3.3
Pin Count	5
JESD-30 Code	R-PSSO-G5
Function	LDO
Number of Outputs	1
Voltage - Input (Max)	6V
Output Voltage	3.3V
Output Type	Fixed
Polarity	Positive
Output Configuration	Positive
Output Current	1.5 A
Current - Output	1.5A
Control Features	Enable
Voltage - Output (Min/Fixed)	3.3V
Number of Regulators	1
Min Input Voltage	2.25V
Protection Features	Over Current, Over Temperature, Reverse Polarity
Voltage Dropout (Max)	0.5V @ 1.5A
PSRR	--
Reference Voltage	1.24 V
Seated Height-Max	2.16 mm
Product Type	LDO Voltage Regulators
Output Voltage1-Max	3.366 V
Output Voltage1-Min	3.234 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	1.5 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.5 V
Screening Level	Extended Industrial
Operating Temperature TJ-Max	125 °C
Line Regulation	0.5 %
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	3.3 V
Load Regulation	1 %
Product Category	LDO Voltage Regulators
Width	8 mm
Length	9.395 mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

MIC37151-3.3WR-TR Product Details

MIC37151-3.3WR-TR Overview

In a Tape & Reel (TR) case, the IC voltage regulator is delivered. A SPak-5 (5 leads + Tab) case contains the Liner IC. This PMIC chip has an output type of Fixed. In this electrical part, there are 1 regulators that are implemented. Voltage Regulated IC Surface Mount varies its operating temperature range. The IC Voltage Regulator's operating temperature is -40°C~125°C degrees. Currently, this regulator IC has an output function configured as Positive as its output function. The current output of this IC regulator is 1.5A. There are 5 pins in total on this board. Featuring 1 outputs in total, this voltage regulator IC enables prompt, sufficient performance regardless of the application. A 5-pin is present on the chip. It is MIC37151-3.3 for this voltage regulator IC, just for your information. I would describe this component as a typical PMIC - Power Management ICs component. In this case, the regulator type is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR, which corresponds to this voltage regulator IC. In fact, it is voltage regulator IC of the -- Series of cameras. When the temperature is below 125°C, you are advised to use the voltage regulator IC. The chip's operating temperature cannot be lowered below -40°C.
