Name: MIC37151-1.8WR-TR
Brand: Microchip Technology
SKU: MIC37151-1.8WR-TR
Price: 2.34000 USD
Availability: InStock

new-10%

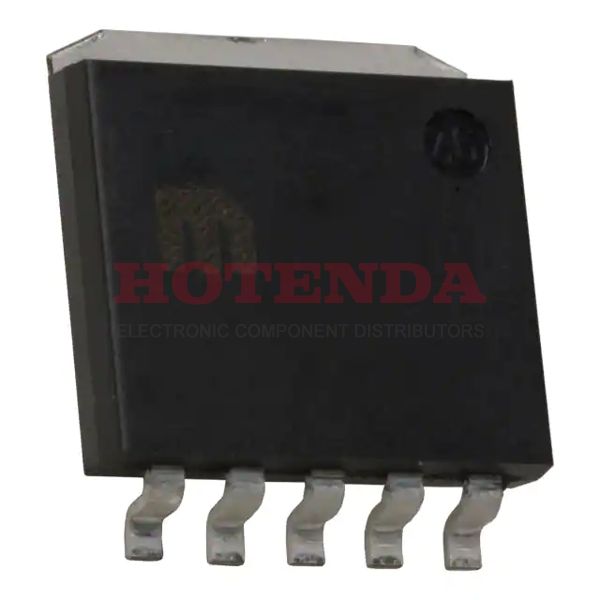

MIC37151-1.8WR-TR

Manufacturer part number:MIC37151-1.8WR-TR

Manufacturer:Microchip Technology

Description:Enable Fixed 1.7 mm MIC37151-1.8 PMIC -- Series 5 SPak-5 (5 leads + Tab)

Case Package:SOT-23

Datasheet:MIC37151-1.8WR-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SPak-5 (5 leads + Tab)
Surface Mount	YES
Number of Pins	5
Supplier Device Package	S-PAK-5
Number of Terminals	5
Mounting Style	SMD/SMT
Supplier Package	S-PAK
Junction to Case	2 °C/W
Input Voltage Range	2.25, 6 V
Maximum Input Voltage	6 V
Mounting	Surface Mount
Package	Tape & Reel (TR)
Base Product Number	MIC37151
Mfr	Microchip Technology
Product Status	Active
Manufacturer	Microchip
Brand	Microchip Technology
Package Shape	RECTANGULAR
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	--
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn) - annealed
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
HTS Code	8542.39.00.01
Subcategory	PMIC - Power Management ICs
Packing Method	TAPE AND REEL
Technology	BIPOLAR
Terminal Position	SINGLE
Terminal Form	GULL WING
Number of Functions	1
Terminal Pitch	1.7 mm
Reach Compliance Code	not_compliant
Base Part Number	MIC37151-1.8
Pin Count	5
JESD-30 Code	R-PSSO-G5
Function	LDO
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	6V
Output Voltage	1.8V
Output Type	Fixed
Polarity	Positive
Output Configuration	Positive
Output Current	1.5 A
Current - Output	1.5A
Control Features	Enable
Voltage - Output (Min/Fixed)	1.8V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Reverse Polarity
Voltage Dropout (Max)	0.5V @ 1.5A
PSRR	--
Reference Voltage	1.24 V
Seated Height-Max	2.16 mm
Product Type	LDO Voltage Regulators
Output Voltage1-Max	1.836 V
Output Voltage1-Min	1.764 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	2%
Output Current1-Max	1.5 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.5 V
Screening Level	Extended Industrial
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	6.5 V
Adjustability	FIXED
Line Regulation	0.5 %
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	1.8 V
Load Regulation	1 %
Product Category	LDO Voltage Regulators
Width	8 mm
Length	9.395 mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MIC37151-1.8WR-TR Product Details

MIC37151-1.8WR-TR Overview

In a Tape & Reel (TR) case, the IC voltage regulator is delivered. A SPak-5 (5 leads + Tab) case contains the Liner IC. This PMIC chip has an output type of Fixed. In this electrical part, there are 1 regulators that are implemented. Voltage Regulated IC Surface Mount varies its operating temperature range. The IC Voltage Regulator's operating temperature is -40°C~125°C degrees. Currently, this regulator IC has an output function configured as Positive as its output function. The current output of this IC regulator is 1.5A. There are 5 pins in total on this board. Featuring 1 outputs in total, this voltage regulator IC enables prompt, sufficient performance regardless of the application. A 5-pin is present on the chip. It is MIC37151-1.8 for this voltage regulator IC, just for your information. I would describe this component as a typical PMIC - Power Management ICs component. In this case, the regulator type is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR, which corresponds to this voltage regulator IC. A packing method for the IC regulator is TAPE AND REEL, which means it is packed in a certain way. In fact, it is voltage regulator IC of the -- Series of cameras. When the temperature is below 125°C, you are advised to use the voltage regulator IC. The chip's operating temperature cannot be lowered below -40°C.
