Name: MIC2954-02BZ-TR
Brand: Microchip Technology
SKU: MIC2954-02BZ-TR
Availability: InStock

new-10%

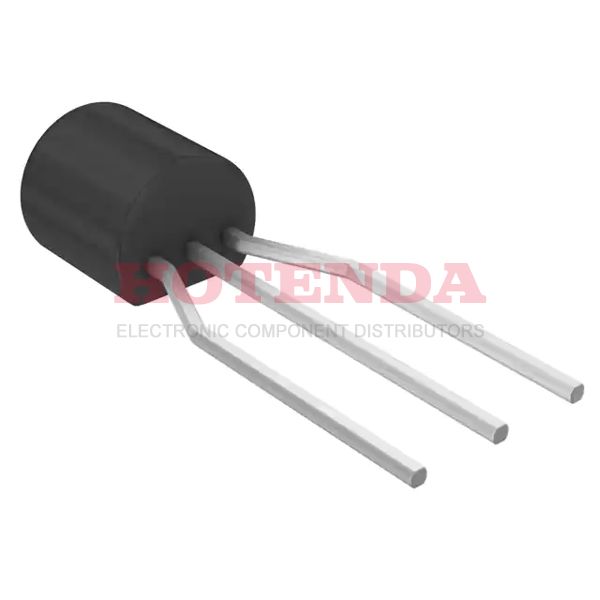

MIC2954-02BZ-TR

Manufacturer part number:MIC2954-02BZ-TR

Manufacturer:Microchip Technology

Description:-- Fixed 1.27 mm MIC2954 PMIC -- Series 3 TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)

Case Package:SOT-23

Datasheet:MIC2954-02BZ-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Through Hole
Package / Case	TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
Surface Mount	NO
Supplier Device Package	TO-92-3
Number of Terminals	3
Package	Tape & Reel (TR)
Base Product Number	MIC2954
Mfr	Microchip Technology
Product Status	Discontinued at Digi-Key
Package Shape	ROUND
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Published	2007
Series	--
JESD-609 Code	e0
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn80Pb20)
HTS Code	8542.39.00.01
Subcategory	Other Regulators
Packing Method	TAPE AND REEL
Technology	BIPOLAR
Terminal Position	BOTTOM
Terminal Form	THROUGH-HOLE
Peak Reflow Temperature (Cel)	240
Number of Functions	1
Terminal Pitch	1.27 mm
Reach Compliance Code	compliant
Base Part Number	MIC2954
Pin Count	3
JESD-30 Code	O-XBCY-T3
Current - Supply (Max)	12mA
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	30V
Output Type	Fixed
Output Configuration	Positive
Current - Output	250mA
Control Features	--
Voltage - Output (Min/Fixed)	5V
Number of Regulators	1
Protection Features	Load Dump, Over Current, Over Temperature, Reverse Polarity, UV POR
Current - Quiescent (Iq)	300μA
Voltage Dropout (Max)	0.6V @ 250mA
PSRR	--
Dropout Voltage1-Nom	0.375 V
Output Voltage1-Max	5.07 V
Output Voltage1-Min	4.93 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	1.4%
Output Current1-Max	0.25 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.6 V
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	60 V
Adjustability	FIXED
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	5 V
RoHS Status	Non-RoHS Compliant

MIC2954-02BZ-TR Product Details

MIC2954-02BZ-TR Overview

In the case of Tape & Reel (TR) cases, the regulater IC is delivered. Packaging of the Liner regulator IC takes the form of a TO-226-3, TO-92-3 (TO-226AA) (Formed Leads) case. Fixed is the Voltage Regulator Chip's output type. Linear IC consists of 1 battery regulators. The range of operating temperatures of Through Hole are programmable in the Voltage Regulator Chip, so that the temperature can be varied as desired. Keeping the temperature at -40°C~125°C degrees is necessary for this regulator to function. There is an output function of Positive configured for this regulator. Currently, 250mA are being output by it at the moment. The sum of the pins in this unit is 3. The part includes 1 outputs in order to ensure that the voltage regulator IC performs effectively and in a timely manner. Here's the basic part number for this IC regulator: MIC2954. This voltage regulator IC is what is known as a standard Other Regulators component. This device has a regulator type called FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR, which means it operates on a DC voltage. Packing the voltage regulator IC is done in a method called TAPE AND REEL. The phone is a member of the -- Series.
