Name: MIC2950-06BZ-TR
Brand: Microchip Technology
SKU: MIC2950-06BZ-TR
Availability: InStock

new-10%

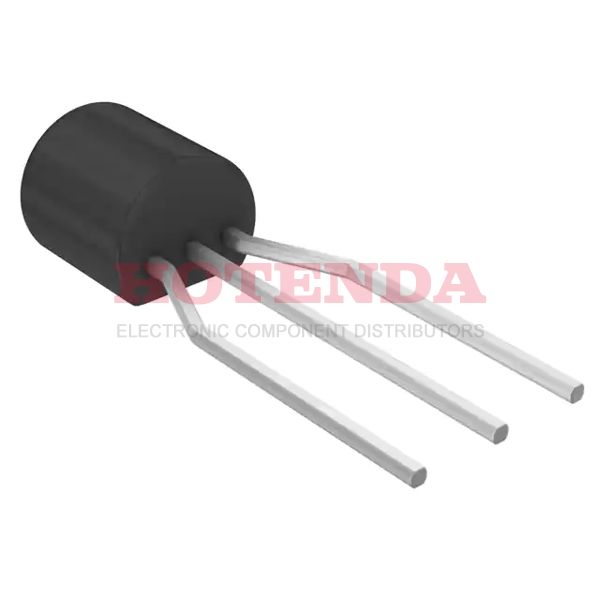

MIC2950-06BZ-TR

Manufacturer part number:MIC2950-06BZ-TR

Manufacturer:Microchip Technology

Description:Enable Adjustable (Fixed) MIC2950-06 PMIC -- Series 3 TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)

Case Package:SOT-23

Datasheet:MIC2950-06BZ-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Through Hole
Package / Case	TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
Surface Mount	NO
Supplier Device Package	TO-92-3
Number of Terminals	3
Package	Tape & Reel (TR)
Base Product Number	MIC2950-06
Mfr	Microchip Technology
Product Status	Discontinued at Digi-Key
Package Shape	ROUND
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Published	2010
Series	--
JESD-609 Code	e0
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn80Pb20)
HTS Code	8542.39.00.01
Technology	BIPOLAR
Terminal Position	BOTTOM
Terminal Form	THROUGH-HOLE
Peak Reflow Temperature (Cel)	240
Number of Functions	1
Reach Compliance Code	compliant
Base Part Number	MIC2950-06
Pin Count	3
JESD-30 Code	O-PBCY-T3
Current - Supply (Max)	8mA
Qualification Status	Not Qualified
Voltage - Input (Max)	30V
Output Type	Adjustable (Fixed)
Output Configuration	Positive
Current - Output	150mA
Control Features	Enable
Voltage - Output (Min/Fixed)	1.24V 5V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Reverse Polarity
Current - Quiescent (Iq)	300μA
Voltage Dropout (Max)	0.6V @ 150mA
PSRR	--
Output Voltage1-Max	5.1 V
Output Voltage1-Min	4.9 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	0.15 A
Voltage - Output (Max)	29V
Dropout Voltage1-Max	0.6 V
Operating Temperature TJ-Max	125 °C
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	5 V
RoHS Status	ROHS3 Compliant

MIC2950-06BZ-TR Product Details

MIC2950-06BZ-TR Overview

An Tape & Reel (TR) case is included with the delivery. There is a TO-226-3, TO-92-3 (TO-226AA) (Formed Leads) case with the integrated voltage regulator. In terms of output type, Adjustable (Fixed) is what the Regulator IC produces. The electronic component implements 1 Voltage regulator ICs. IC Regulator is possible to alter the range of the operating temperature of Through Hole in the device. In order for this IC voltage regulator to operate, the temperature has to be kept at -40°C~125°C degrees. In this case, the output function that is configured for this regulator IC is Positive. There is an 150mAmp current output on this voltage regulator IC. It has a total of 3 pins on IC voltage regulator. It is MIC2950-06 for this regulator, just for your information. It is worth mentioning that the regulator type for this regulator IC is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR. This regulator IC is a part of the -- Series.
