Name: MIC2941AWU
Brand: Microchip Technology
SKU: MIC2941AWU
Price: 2.81000 USD
Availability: InStock

new-10%

MIC2941AWU

Manufacturer part number:MIC2941AWU

Manufacturer:Microchip Technology

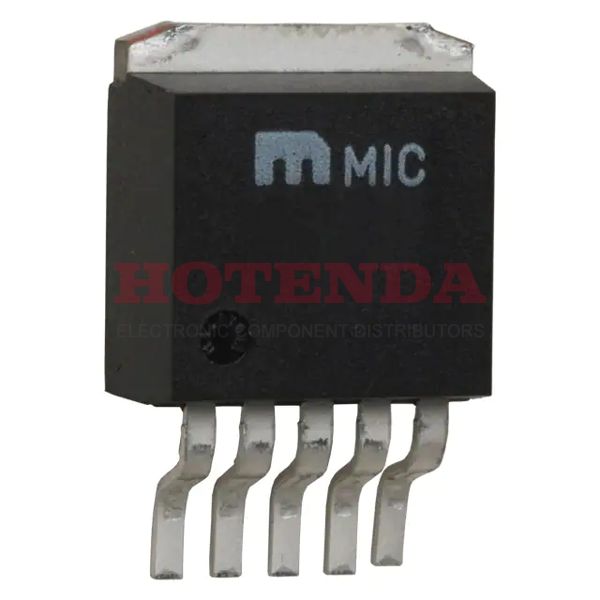

Description:Enable Adjustable 1.702 mm MIC2941A PMIC -- Series 5 TO-263-6, D2Pak (5 Leads + Tab), TO-263BA

Case Package:SOT-23

Datasheet:MIC2941AWU Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Surface Mount	YES
Number of Pins	5
Supplier Device Package	TO-263-5
Number of Terminals	5
Mounting Style	SMD/SMT
Package	Tube
Base Product Number	MIC2941
Mfr	Microchip Technology
Product Status	Active
Dimensions	10.67 x 9.17 x 4.59mm
Package Type	D2PAK (TO-263)
Maximum Operating Temperature	+125 °C
Minimum Operating Temperature	-40 °C
Maximum Input Voltage	26 V
MSL	MSL 3 - 168 hours
Manufacturer	Microchip
Brand	Microchip Technology / Atmel
RoHS	Details
Package Shape	RECTANGULAR
Operating Temperature	-40°C~125°C
Packaging	Tube
Published	1997
Series	--
Tolerance	2.5 %
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
HTS Code	8542.39.00.01
Subcategory	PMIC - Power Management ICs
Technology	BIPOLAR
Terminal Position	SINGLE
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	245
Number of Functions	1
Terminal Pitch	1.702 mm
Reach Compliance Code	compliant
Current Rating	1.25A
Base Part Number	MIC2941A
Pin Count	5
JESD-30 Code	R-PSSO-G5
Current - Supply (Max)	70mA
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	26V
Output Voltage	26V
Output Type	Adjustable
Max Output Current	1.25A
Polarity	Positive
Output Configuration	Positive
Output Current	1.25A
Current - Output	1.25A
Quiescent Current	500μA
Control Features	Enable
Accuracy	1 %
Max Output Voltage	26V
Voltage - Output (Min/Fixed)	1.24V
Number of Regulators	1
Min Input Voltage	2V
Protection Features	Over Current, Over Temperature, Reverse Polarity
Current - Quiescent (Iq)	500μA
Voltage Dropout (Max)	0.6V @ 1.25A
Max Input Voltage	26V
PSRR	--
Reference Voltage	1.235V
Seated Height-Max	4.902 mm
Dropout Voltage	350μV
Product Type	LDO Voltage Regulators
Min Output Voltage	1.24V
Output Voltage1-Max	26 V
Output Voltage1-Min	1.24 V
Regulator Type	Low Dropout Voltage
Output Current1-Max	1.25 A
Voltage - Output (Max)	26V
Dropout Voltage1-Max	0.6 V
Operating Temperature TJ-Max	125 °C
Input Bias Current	60nA
Output Voltage Accuracy	1 %
Line Regulation	0.5 %
Operating Temperature TJ-Min	-40 °C
Load Regulation	0.16 %
Product Category	LDO Voltage Regulators
Height	4.59mm
Length	10.67mm
Width	9.17mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MIC2941AWU Product Details

MIC2941AWU Overview

This Voltage Regulator IC comes inTube packaging. This battery regulator is contained in a TO-263-6, D2Pak (5 Leads + Tab), TO-263BA package. The IC chip's output type is Adjustable. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 1.25A. IC voltage regulator has a sum of 5 pins. To ensure prompt, sufficient performance, this part features 1 outputs in total. Its dropout voltage is 10 volts. The component's pin number remains 5. FYI, the basic part number for this IC regulator is MIC2941A. This regulator IC is a typical PMIC - Power Management ICs. The regulator type for this IC regulator is Low Dropout Voltage. It works in 1.25A output current at mostIt operates in the 500μA Quiescent Current state. It is part of the -- Series. The regulator operates with a maximum operating temperature of 125°C. At the very least, the voltage regulator IC works with a -40°C operating temperature. Speaking of tolerance, this voltage regulator IC is characterized to have 2.5 % tolerance, which is quite low.
