Name: MIC2940A-5.0BU TR
Brand: Microchip Technology
SKU: MIC2940A-5.0BU TR
Availability: InStock

new-10%

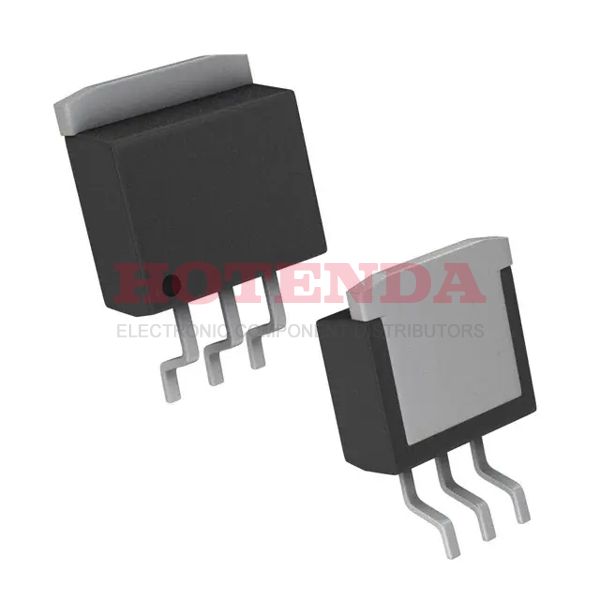

MIC2940A-5.0BU TR

Manufacturer part number:MIC2940A-5.0BU TR

Manufacturer:Microchip Technology

Description:-- Fixed 2.54 mm MIC2940A-5.0 PMIC -- Series 4 TO-263-4, D2Pak (3 Leads + Tab), TO-263AA

Case Package:SOT-23

Datasheet:MIC2940A-5.0BU TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	TO-263-4, D2Pak (3 Leads + Tab), TO-263AA
Surface Mount	YES
Supplier Device Package	TO-263-3
Number of Terminals	3
Package	Tape & Reel (TR)
Base Product Number	MIC2940A-5.0
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	--
JESD-609 Code	e0
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn85Pb15)
HTS Code	8542.39.00.01
Technology	BIPOLAR
Terminal Position	SINGLE
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	240
Number of Functions	1
Terminal Pitch	2.54 mm
Reach Compliance Code	compliant
Base Part Number	MIC2940A-5.0
Pin Count	4
JESD-30 Code	R-PSSO-G3
Current - Supply (Max)	70mA
Qualification Status	Not Qualified
Voltage - Input (Max)	26V
Output Type	Fixed
Output Configuration	Positive
Current - Output	1.25A
Control Features	--
Voltage - Output (Min/Fixed)	5V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Reverse Polarity
Current - Quiescent (Iq)	500μA
Voltage Dropout (Max)	0.6V @ 1.25A
PSRR	--
Seated Height-Max	4.902 mm
Output Voltage1-Max	5.125 V
Output Voltage1-Min	4.875 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	1.25 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.6 V
Operating Temperature TJ-Max	125 °C
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	5 V
Width	8.7755 mm
Length	10.363 mm
RoHS Status	Non-RoHS Compliant

MIC2940A-5.0BU TR Product Details

MIC2940A-5.0BU TR Overview

This Voltage Regulator IC comes inTape & Reel (TR) packaging. This battery regulator is contained in a TO-263-4, D2Pak (3 Leads + Tab), TO-263AA package. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 1.25A. IC voltage regulator has a sum of 4 pins. FYI, the basic part number for this IC regulator is MIC2940A-5.0. The regulator type for this IC regulator is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR. It is part of the -- Series.
