Name: MIC29303WU
Brand: Microchip Technology
SKU: MIC29303WU
Price: 5.60000 USD
Availability: InStock

new-10%

MIC29303WU

Manufacturer part number:MIC29303WU

Manufacturer:Microchip Technology

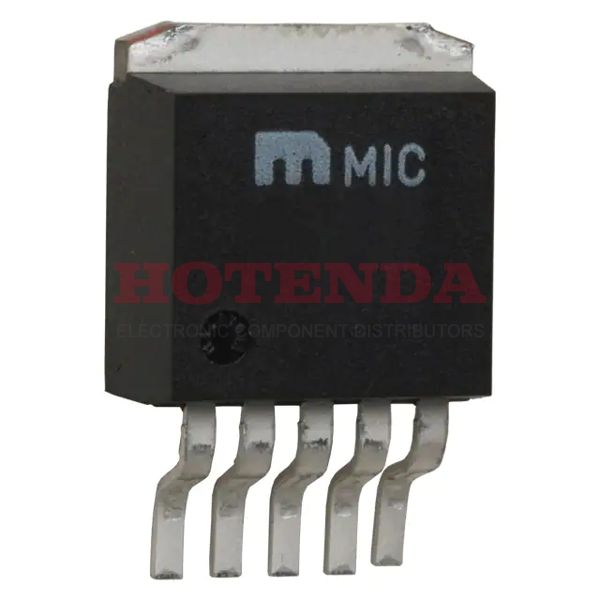

Description:-- Adjustable MIC29303 PMIC -- Series 5 +Tab TO-263-6, D2Pak (5 Leads + Tab), TO-263BA

Case Package:SOT-23

Datasheet:MIC29303WU Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Number of Pins	5
Supplier Device Package	TO-263-5
Mounting Style	SMD/SMT
Polarity Type	Positive
Regulator Output Type	Adjustable
Voltage Regulator Type	Linear
Dropout Voltage@Current (Max)	0.175@100mA/0.6@3A
Operating Temperature Classification	Automotive
Package Type	TO-263
Dropout Voltage@Current (Typ)	0.08@100mA/[email protected]
Operating Temp Range	-40C to 125C
Rad Hardened	No
Mounting	Surface Mount
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology / Atmel
RoHS	Details
Package	Tube
Base Product Number	MIC29303
Mfr	Microchip Technology
Product Status	Active
Operating Temperature	-40°C~125°C
Packaging	Tube
Published	2005
Series	--
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Type	LDO
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Subcategory	PMIC - Power Management ICs
Base Part Number	MIC29303
Pin Count	5 +Tab
Number of Outputs	1
Voltage - Input (Max)	26V
Output Voltage	25V
Output Type	Adjustable
Max Output Current	3A
Polarity	Positive
Output Configuration	Positive
Output Current	3000(mA)
Current - Output	3A
Quiescent Current	35mA
Control Features	--
Max Output Voltage	25V
Input Voltage (Min)	2.5(V)
Voltage - Output (Min/Fixed)	1.25V
Topology	LDO
Number of Regulators	1
Min Input Voltage	2.5V
Protection Features	Over Current, Over Temperature, Reverse Polarity, Transient Voltage
Voltage Dropout (Max)	0.6V @ 3A
Input Voltage (Max)	26 V
Max Input Voltage	26V
PSRR	--
Reference Voltage	1.252(V)
Dropout Voltage	370mV
Product Type	LDO Voltage Regulators
Min Output Voltage	1.25V
Voltage - Output (Max)	25V
Output Voltage Accuracy	�1 %
Line Regulation	0.5%
Load Regulation	1%
Product	LDO Voltage Regulators
Input Voltage	26(V)
Product Category	LDO Voltage Regulators
Quiescent Current (Max)	35 mA
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MIC29303WU Product Details

MIC29303WU Overview

A Tube case is used to deliver this IC regulator. This voltage regulator IC comes in a TO-263-6, D2Pak (5 Leads + Tab), TO-263BA case. Output type Adjustable. This component features 1 Voltage regulators. As a result of the Linear Voltage Regulator's design, the operating temperature of Surface Mount can be adjusted within a specified range. There is a temperature range of -40°C~125°C degrees during operation of the IC regulator. There is a configuration in this voltage regulator IC that specifies that its output function is Positive. In terms of its current output, it is able to supply 3A. A total of 5 +Tab pins can be found on the board. In order to deliver prompt, sufficient and reliable performance, this regulator IC has 1 outputs in total. A dropout voltage of 10 volts can be obtained from this voltage regulator IC. There are 5 pins on the chip. As an FYI, this IC voltage regulator has the basic part number MIC29303. An example of such a component would be this PMIC - Power Management ICs component. Taking into account the operation requirements, the maximum output current of the IC voltage regulator reaches 3A. It operates in the 35mA Quiescent Current state. This model is a part of the -- Series and is of high quality. If the temperature is below 125°C, it is recommended that you utilize this feature. It is recommended that the chip be operated at a temperature no lower than -40°C operating temperature.
