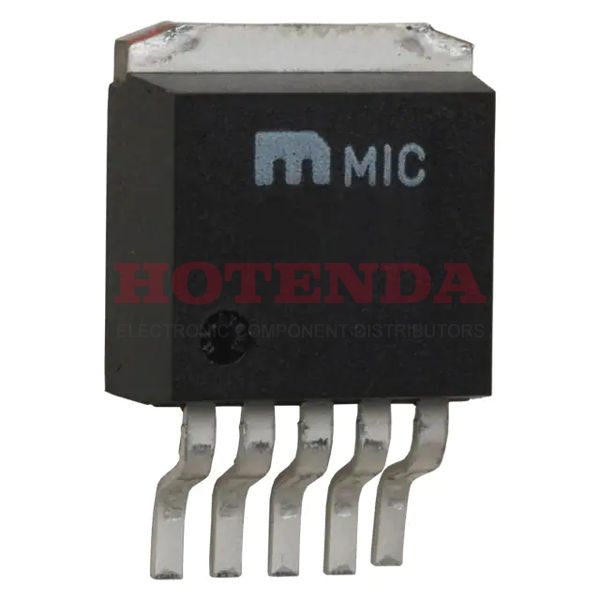

Name: MIC29303BU
Brand: Microchip Technology
SKU: MIC29303BU
Availability: InStock

new-10%

MIC29303BU

Manufacturer part number:MIC29303BU

Manufacturer:Microchip Technology

Description:-- Adjustable MIC29303 PMIC -- Series TO-263-6, D2Pak (5 Leads + Tab), TO-263BA

Case Package:SOT-23

Datasheet:MIC29303BU Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Supplier Device Package	TO-263-5
Package	Tube
Base Product Number	MIC29303
Mfr	Microchip Technology
Product Status	Obsolete
Operating Temperature	-40°C~125°C
Packaging	Tube
Published	1999
Series	--
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Base Part Number	MIC29303
Voltage - Input (Max)	26V
Output Type	Adjustable
Output Configuration	Positive
Current - Output	3A
Control Features	--
Voltage - Output (Min/Fixed)	1.25V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Reverse Polarity, Transient Voltage
Voltage Dropout (Max)	0.6V @ 3A
PSRR	--
Voltage - Output (Max)	25V
RoHS Status	Non-RoHS Compliant

MIC29303BU Product Details

MIC29303BU Overview

The package contains a Tube case. In TO-263-6, D2Pak (5 Leads + Tab), TO-263BA cases, it is packaged. Adjustable is the IC Voltage Regulator's output type. A total of 1 regulators are implemented in this eletric component. Surface Mount operating temperature varies depending on the IC Voltage Regulator. The Regulator IC chip is set to operate at -40°C~125°C degrees. It has been configured that the output function of this IC regulator is Positive. There is an output of 3A at the moment. I just wanted to let you know that this IC voltage regulator has the part number MIC29303 as its basic part number. It belongs to the -- Series of regulators.
