Name: MIC29301-12WU-TR
Brand: Microchip Technology
SKU: MIC29301-12WU-TR
Price: 4.53000 USD
Availability: InStock

new-10%

MIC29301-12WU-TR

Manufacturer part number:MIC29301-12WU-TR

Manufacturer:Microchip Technology

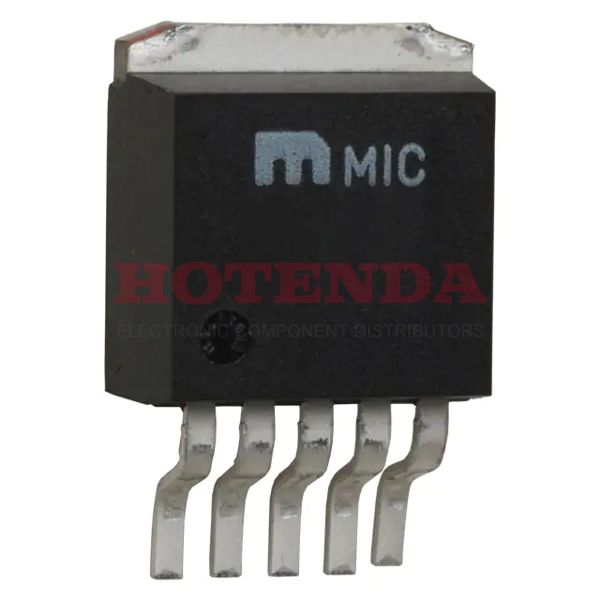

Description:Enable Fixed 1.702 mm MIC29301-12 PMIC -- Series TO-263-6, D2Pak (5 Leads + Tab), TO-263BA

Case Package:SOT-23

Datasheet:MIC29301-12WU-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Surface Mount	YES
Number of Pins	6
Supplier Device Package	TO-263-5
Number of Terminals	5
Mounting Style	SMD/SMT
Package	Tape & Reel (TR)
Base Product Number	MIC29301
Mfr	Microchip Technology
Product Status	Active
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Package Shape	RECTANGULAR
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Published	2012
Series	--
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn) - annealed
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
HTS Code	8542.39.00.01
Subcategory	PMIC - Power Management ICs
Technology	BIPOLAR
Terminal Position	SINGLE
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	245
Number of Functions	1
Terminal Pitch	1.702 mm
Reach Compliance Code	compliant
Base Part Number	MIC29301-12
JESD-30 Code	R-PSSO-G5
Qualification Status	Not Qualified
Voltage - Input (Max)	26V
Output Voltage	12V
Output Type	Fixed
Output Configuration	Positive
Output Current	150 mA
Current - Output	3A
Control Features	Enable
Voltage - Output (Min/Fixed)	12V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Reverse Polarity, Transient Voltage
Voltage Dropout (Max)	0.6V @ 3A
PSRR	--
Seated Height-Max	4.902 mm
Dropout Voltage	370mV
Product Type	LDO Voltage Regulators
Output Voltage1-Max	12.24 V
Output Voltage1-Min	11.76 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	3 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.6 V
Screening Level	TS 16949
Operating Temperature TJ-Max	125 °C
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	12 V
Product Category	LDO Voltage Regulators
Width	8.7805 mm
Length	10.363 mm
RoHS Status	ROHS3 Compliant

MIC29301-12WU-TR Product Details

MIC29301-12WU-TR Overview

This Voltage Regulator IC comes inTape & Reel (TR) packaging. This battery regulator is contained in a TO-263-6, D2Pak (5 Leads + Tab), TO-263BA package. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 3A. Its dropout voltage is 10 volts. The component's pin number remains 6. FYI, the basic part number for this IC regulator is MIC29301-12. This regulator IC is a typical PMIC - Power Management ICs. The regulator type for this IC regulator is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR. It is part of the -- Series. The regulator operates with a maximum operating temperature of 125°C. At the very least, the voltage regulator IC works with a -40°C operating temperature.
