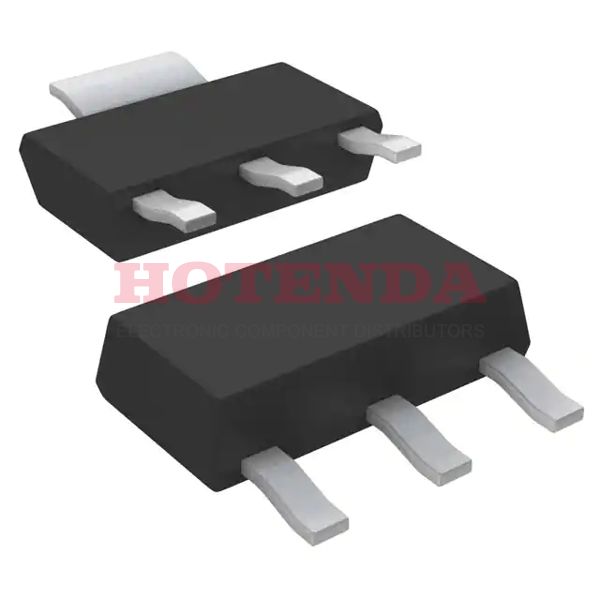

Name: MIC2920A-12BS TR
Brand: Microchip Technology
SKU: MIC2920A-12BS TR
Availability: InStock

new-10%

MIC2920A-12BS TR

Manufacturer part number:MIC2920A-12BS TR

Manufacturer:Microchip Technology

Description:- Fixed 2.31 mm MIC2920A-12 PMIC - Series 4 TO-261-4, TO-261AA

Case Package:SOT-23

Datasheet:MIC2920A-12BS TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	TO-261-4, TO-261AA
Surface Mount	YES
Supplier Device Package	SOT-223-3
Number of Terminals	4
Package	Tape & Reel (TR)
Base Product Number	MIC2920A-12
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Published	2012
Series	-
JESD-609 Code	e0
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn85Pb15)
HTS Code	8542.39.00.01
Technology	BIPOLAR
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	240
Number of Functions	1
Terminal Pitch	2.31 mm
Reach Compliance Code	compliant
Base Part Number	MIC2920A-12
Pin Count	4
JESD-30 Code	R-PDSO-G4
Current - Supply (Max)	12mA
Qualification Status	Not Qualified
Voltage - Input (Max)	26V
Output Type	Fixed
Output Configuration	Positive
Current - Output	400mA
Control Features	-
Voltage - Output (Min/Fixed)	12V
Number of Regulators	1
Protection Features	Load Dump, Over Current, Reverse Polarity
Current - Quiescent (Iq)	300μA
Voltage Dropout (Max)	0.75V @ 400mA
PSRR	-
Seated Height-Max	1.8 mm
Output Voltage1-Max	12.36 V
Output Voltage1-Min	11.64 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	0.4 A
Voltage - Output (Max)	-
Dropout Voltage1-Max	0.75 V
Operating Temperature TJ-Max	125 °C
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	12 V
Width	3.505 mm
Length	6.5 mm
RoHS Status	Non-RoHS Compliant

MIC2920A-12BS TR Product Details

MIC2920A-12BS TR Overview

This Voltage Regulator IC comes inTape & Reel (TR) packaging. Packaged in a TO-261-4, TO-261AA case, the battery regulator IC is protected from damage during shipment. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 400mA. There are totally 4 pins on this chip. FYI, the basic part number for this IC regulator is MIC2920A-12. The regulator type for this IC regulator is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR. It is part of the - Series.
