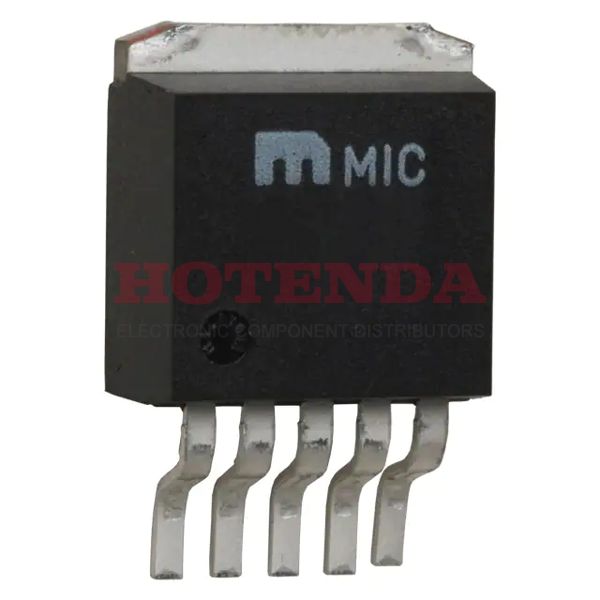

Name: MIC29152BU
Brand: Microchip Technology
SKU: MIC29152BU
Availability: InStock

new-10%

MIC29152BU

Manufacturer part number:MIC29152BU

Manufacturer:Microchip Technology

Description:Enable Adjustable MIC29152 PMIC -- Series TO-263-6, D2Pak (5 Leads + Tab), TO-263BA

Case Package:SOT-23

Datasheet:MIC29152BU Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Supplier Device Package	TO-263-5
Package	Tube
Base Product Number	MIC29152
Mfr	Microchip Technology
Product Status	Obsolete
Operating Temperature	-40°C~125°C
Packaging	Tube
Published	2005
Series	--
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Base Part Number	MIC29152
Voltage - Input (Max)	26V
Output Type	Adjustable
Output Configuration	Positive
Current - Output	1.5A
Control Features	Enable
Voltage - Output (Min/Fixed)	1.25V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Reverse Polarity, Transient Voltage
Voltage Dropout (Max)	0.6V @ 1.5A
PSRR	--
Voltage - Output (Max)	25V
RoHS Status	Non-RoHS Compliant

MIC29152BU Product Details

MIC29152BU Overview

The package is delivered in a Tube case. In order to package the IC voltage regulator, a TO-263-6, D2Pak (5 Leads + Tab), TO-263BA case is used. This IC Regulator has a type of output called Adjustable. There are 1 regulators implemented in this electroic component. Surface Mount can be adjusted in the Linear IC in order to vary the temperature range over which Linear Regulator operates. The IC voltage regulator must be maintained at -40°C~125°C degrees for it to function. As you can see, this regulator's output function is configured to be Positive. At present, it can produce an output of up to 1.5A. For your information, part number MIC29152 is the basic part number for this voltage regulator IC. The -- Series is a series of products made by D-Link.
