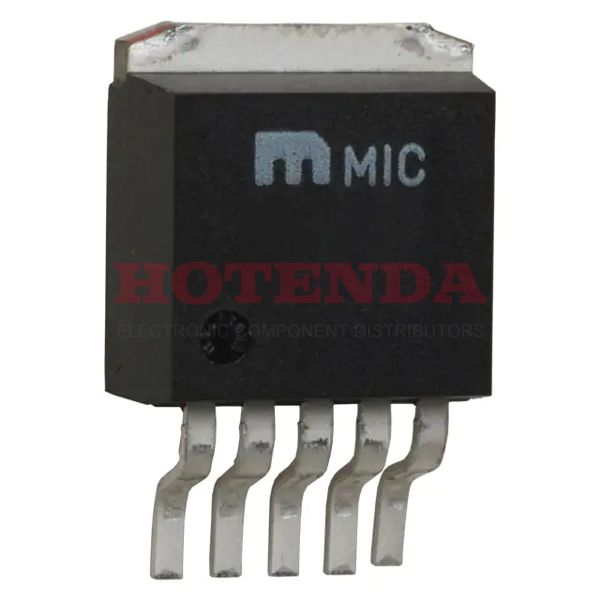

Name: MIC29151-3.3BU TR
Brand: Microchip Technology
SKU: MIC29151-3.3BU TR
Availability: InStock

new-10%

MIC29151-3.3BU TR

Manufacturer part number:MIC29151-3.3BU TR

Manufacturer:Microchip Technology

Description:Enable Fixed 1.702 mm MIC29151-3.3 PMIC -- Series 4 TO-263-6, D2Pak (5 Leads + Tab), TO-263BA

Case Package:SOT-23

Datasheet:MIC29151-3.3BU TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Surface Mount	YES
Supplier Device Package	TO-263-5
Number of Terminals	5
Package	Tape & Reel (TR)
Base Product Number	MIC29151-3.3
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	--
JESD-609 Code	e0
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn85Pb15)
HTS Code	8542.39.00.01
Subcategory	Other Regulators
Packing Method	TAPE AND REEL
Technology	BIPOLAR
Terminal Position	SINGLE
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	240
Number of Functions	1
Terminal Pitch	1.702 mm
Reach Compliance Code	not_compliant
Base Part Number	MIC29151-3.3
Pin Count	4
JESD-30 Code	R-PSSO-G5
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	26V
Output Type	Fixed
Output Configuration	Positive
Current - Output	1.5A
Control Features	Enable
Voltage - Output (Min/Fixed)	3.3V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Reverse Polarity, Transient Voltage
Voltage Dropout (Max)	0.6V @ 1.5A
PSRR	--
Seated Height-Max	4.902 mm
Dropout Voltage1-Nom	0.35 V
Output Voltage1-Max	3.366 V
Output Voltage1-Min	3.234 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	2%
Output Current1-Max	1.5 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.6 V
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	60 V
Adjustability	FIXED
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	3.3 V
Width	8.78 mm
Length	10.363 mm
RoHS Status	Non-RoHS Compliant

MIC29151-3.3BU TR Product Details

MIC29151-3.3BU TR Overview

The package contains a Tape & Reel (TR) case. In TO-263-6, D2Pak (5 Leads + Tab), TO-263BA cases, it is packaged. Fixed is the IC Voltage Regulator's output type. A total of 1 regulators are implemented in this eletric component. Surface Mount operating temperature varies depending on the IC Voltage Regulator. The Regulator IC chip is set to operate at -40°C~125°C degrees. It has been configured that the output function of this IC regulator is Positive. There is an output of 1.5A at the moment. 4 pins make up the sum of this IC voltage regulator. As a result of this IC voltage regulator's 1 outputs, it ensures prompt, adequate performance for all your applications. I just wanted to let you know that this IC voltage regulator has the part number MIC29151-3.3 as its basic part number. In terms of components, this is an example of a Other Regulators component. This device is controlled by a FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR type regulator. In this case, the IC voltage regulator will be packed in the following way. It belongs to the -- Series of regulators.
