Name: MIC29151-12BU TR
Brand: Microchip Technology
SKU: MIC29151-12BU TR
Availability: InStock

new-10%

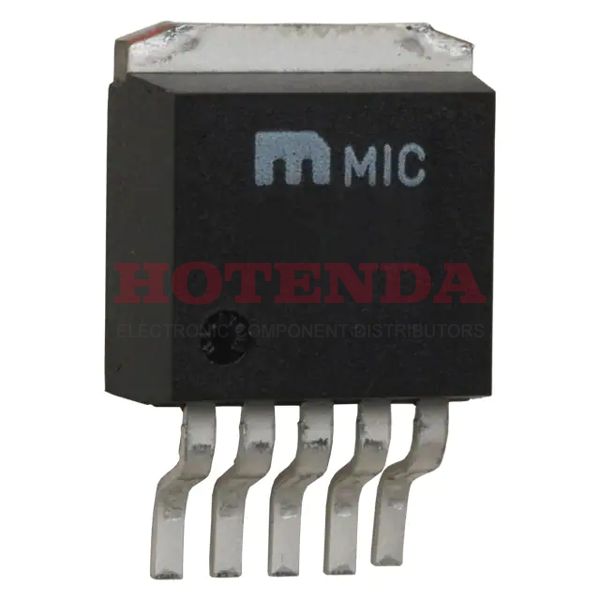

MIC29151-12BU TR

Manufacturer part number:MIC29151-12BU TR

Manufacturer:Microchip Technology

Description:Enable Fixed 1.702 mm MIC29151-12 PMIC -- Series 4 TO-263-6, D2Pak (5 Leads + Tab), TO-263BA

Case Package:SOT-23

Datasheet:MIC29151-12BU TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Surface Mount	YES
Supplier Device Package	TO-263-5
Number of Terminals	5
Package	Tape & Reel (TR)
Base Product Number	MIC29151-12
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Published	2012
Series	--
JESD-609 Code	e0
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn85Pb15)
HTS Code	8542.39.00.01
Subcategory	Other Regulators
Packing Method	TAPE AND REEL
Technology	BIPOLAR
Terminal Position	SINGLE
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	240
Number of Functions	1
Terminal Pitch	1.702 mm
Reach Compliance Code	not_compliant
Base Part Number	MIC29151-12
Pin Count	4
JESD-30 Code	R-PSSO-G5
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	26V
Output Type	Fixed
Output Configuration	Positive
Current - Output	1.5A
Control Features	Enable
Voltage - Output (Min/Fixed)	12V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Reverse Polarity, Transient Voltage
Voltage Dropout (Max)	0.6V @ 1.5A
PSRR	--
Seated Height-Max	4.902 mm
Dropout Voltage1-Nom	0.35 V
Output Voltage1-Max	12.24 V
Output Voltage1-Min	11.76 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	2%
Output Current1-Max	1.5 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.6 V
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	60 V
Adjustability	FIXED
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	12 V
Width	8.78 mm
Length	10.363 mm
RoHS Status	Non-RoHS Compliant

MIC29151-12BU TR Product Details

MIC29151-12BU TR Overview

This Voltage Regulator IC comes inTape & Reel (TR) packaging. This battery regulator is contained in a TO-263-6, D2Pak (5 Leads + Tab), TO-263BA package. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 1.5A. IC voltage regulator has a sum of 4 pins. To ensure prompt, sufficient performance, this part features 1 outputs in total. FYI, the basic part number for this IC regulator is MIC29151-12. This regulator IC is a typical Other Regulators. The regulator type for this IC regulator is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR. The way of packing the voltage regulator IC is TAPE AND REEL. It is part of the -- Series.
