Name: MIC2215-PPPYML
Brand: Microchip Technology
SKU: MIC2215-PPPYML
Availability: InStock

new-10%

MIC2215-PPPYML

Manufacturer part number:MIC2215-PPPYML

Manufacturer:Microchip Technology

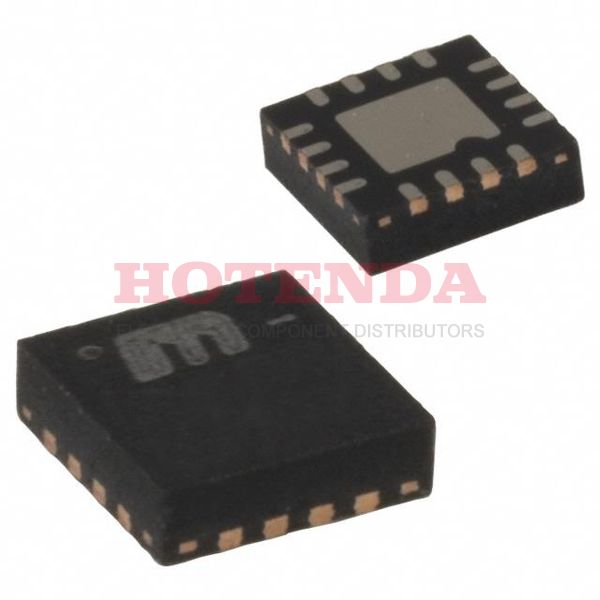

Description:Enable Fixed 0.65 mm MIC2215 PMIC -- Series 16-VQFN Exposed Pad, 16-MLF®

Case Package:SOT-23

Datasheet:MIC2215-PPPYML Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	16-VQFN Exposed Pad, 16-MLF®
Surface Mount	YES
Supplier Device Package	16-MLF® (4x4)
Number of Terminals	16
Package	Tray
Base Product Number	MIC2215
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tray
Published	2007
Series	--
JESD-609 Code	e4
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN Code	EAR99
Terminal Finish	NICKEL PALLADIUM GOLD
HTS Code	8542.39.00.01
Technology	CMOS
Terminal Position	QUAD
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.65 mm
Reach Compliance Code	compliant
Base Part Number	MIC2215
JESD-30 Code	S-XQCC-N16
Current - Supply (Max)	550μA
Number of Outputs	3
Qualification Status	Not Qualified
Voltage - Input (Max)	5.5V
Output Type	Fixed
Output Configuration	Positive
Current - Output	250mA, 250mA, 250mA
Control Features	Enable
Voltage - Output (Min/Fixed)	3V 3V 3V
Number of Regulators	3
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	150μA
Voltage Dropout (Max)	0.275V @ 250mA 0.275V @ 250mA 0.275V @ 250mA
PSRR	70dB ~ 45dB (100Hz ~ 1kHz)
Seated Height-Max	0.9 mm
Output Voltage1-Max	3.06 V
Output Voltage1-Min	2.94 V
Regulator Type	FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR
Output Current1-Max	0.25 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.275 V
Operating Temperature TJ-Max	125 °C
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	3 V
Output Voltage2-Max	3.06 V
Output Voltage2-Min	2.94 V
Output Current2-Max	0.25 A
Dropout Voltage2-Max	0.275 V
Width	4 mm
Length	4 mm
RoHS Status	ROHS3 Compliant

MIC2215-PPPYML Product Details

MIC2215-PPPYML Overview

A Tray case is used to deliver this IC regulator. This voltage regulator IC comes in a 16-VQFN Exposed Pad, 16-MLF® case. Output type Fixed. This component features 3 Voltage regulators. As a result of the Linear Voltage Regulator's design, the operating temperature of Surface Mount can be adjusted within a specified range. There is a temperature range of -40°C~125°C degrees during operation of the IC regulator. There is a configuration in this voltage regulator IC that specifies that its output function is Positive. In terms of its current output, it is able to supply 250mA, 250mA, 250mA. In order to deliver prompt, sufficient and reliable performance, this regulator IC has 3 outputs in total. As an FYI, this IC voltage regulator has the basic part number MIC2215. This device is regulated with the FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR type of regulator. This model is a part of the -- Series and is of high quality.
