Name: MIC2215-PPPBML-TR
Brand: Microchip Technology
SKU: MIC2215-PPPBML-TR
Availability: InStock

new-10%

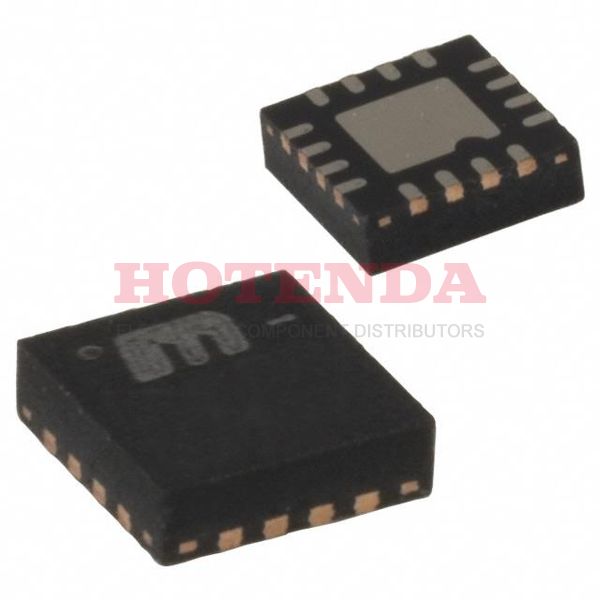

MIC2215-PPPBML-TR

Manufacturer part number:MIC2215-PPPBML-TR

Manufacturer:Microchip Technology

Description:Enable Fixed 0.65 mm MIC2215 PMIC -- Series 16 16-VQFN Exposed Pad, 16-MLF®

Case Package:SOT-23

Datasheet:MIC2215-PPPBML-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Surface Mount	YES
Package / Case	16-VQFN Exposed Pad, 16-MLF®
Mounting Type	Surface Mount
Supplier Device Package	16-MLF® (4x4)
Number of Terminals	16
Package	Tape & Reel (TR)
Base Product Number	MIC2215
Mfr	Microchip Technology
Product Status	Discontinued at Digi-Key
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Series	--
Published	2007
Packaging	Tape & Reel (TR)
Operating Temperature	-40°C~125°C
JESD-609 Code	e0
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn85Pb15)
HTS Code	8542.39.00.01
Subcategory	Other Regulators
Packing Method	TAPE AND REEL
Technology	CMOS
Terminal Position	QUAD
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	240
Number of Functions	1
Terminal Pitch	0.65 mm
Reach Compliance Code	not_compliant
Base Part Number	MIC2215
Pin Count	16
JESD-30 Code	S-XQCC-N16
Current - Supply (Max)	550μA
Number of Outputs	3
Qualification Status	Not Qualified
Voltage - Input (Max)	5.5V
Output Type	Fixed
Output Configuration	Positive
Current - Output	250mA 250mA 250mA
Control Features	Enable
Voltage - Output (Min/Fixed)	3V 3V 3V
Number of Regulators	3
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	150μA
Voltage Dropout (Max)	0.275V @ 250mA 0.275V @ 250mA 0.275V @ 250mA
PSRR	70dB ~ 45dB (100Hz ~ 1kHz)
Seated Height-Max	0.9 mm
Dropout Voltage1-Nom	0.17 V
Output Voltage1-Max	3.06 V
Output Voltage1-Min	2.94 V
Regulator Type	FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	2%
Output Current1-Max	0.25 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.275 V
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	7 V
Adjustability	FIXED
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	3 V
Output Voltage2-Max	3.06 V
Output Voltage2-Min	2.94 V
Output Current2-Max	0.25 A
Dropout Voltage2-Max	0.275 V
Width	4 mm
Length	4 mm
RoHS Status	ROHS3 Compliant

MIC2215-PPPBML-TR Product Details

MIC2215-PPPBML-TR Overview

This Voltage Regulator IC comes inTape & Reel (TR) packaging. This battery regulator is contained in a 16-VQFN Exposed Pad, 16-MLF® package. The IC chip's output type is Fixed. This electronic component implements 3 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 250mA 250mA 250mA. IC voltage regulator has a sum of 16 pins. To ensure prompt, sufficient performance, this part features 3 outputs in total. FYI, the basic part number for this IC regulator is MIC2215. This regulator IC is a typical Other Regulators. The regulator type for this IC regulator is FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR. The way of packing the voltage regulator IC is TAPE AND REEL. It is part of the -- Series.
