Name: MIC2215-PPGBML-TR
Brand: Microchip Technology
SKU: MIC2215-PPGBML-TR
Availability: InStock

new-10%

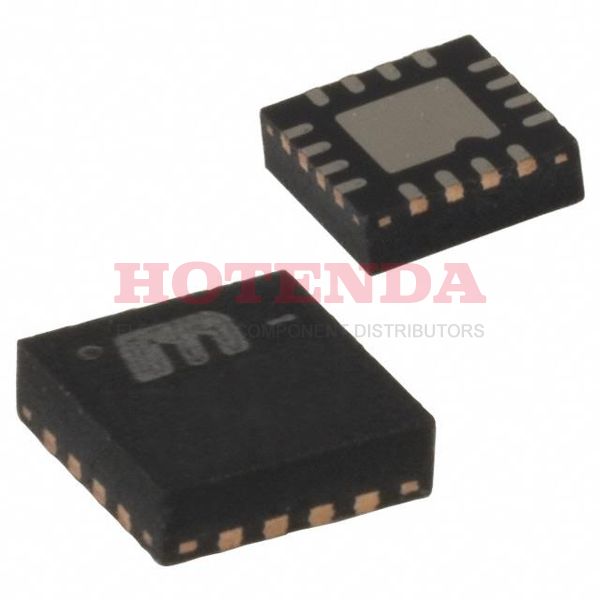

MIC2215-PPGBML-TR

Manufacturer part number:MIC2215-PPGBML-TR

Manufacturer:Microchip Technology

Description:Enable Fixed 0.65 mm MIC2215 PMIC -- Series 16 16-VQFN Exposed Pad, 16-MLF®

Case Package:SOT-23

Datasheet:MIC2215-PPGBML-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	16-VQFN Exposed Pad, 16-MLF®
Surface Mount	YES
Supplier Device Package	16-MLF® (4x4)
Number of Terminals	16
Package	Tape & Reel (TR)
Base Product Number	MIC2215
Mfr	Microchip Technology
Product Status	Discontinued at Digi-Key
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Published	2007
Series	--
JESD-609 Code	e0
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn85Pb15)
HTS Code	8542.39.00.01
Subcategory	Other Regulators
Packing Method	TAPE AND REEL
Technology	CMOS
Terminal Position	QUAD
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	240
Number of Functions	1
Terminal Pitch	0.65 mm
Reach Compliance Code	not_compliant
Base Part Number	MIC2215
Pin Count	16
JESD-30 Code	S-XQCC-N16
Current - Supply (Max)	550μA
Number of Outputs	3
Qualification Status	Not Qualified
Voltage - Input (Max)	5.5V
Output Type	Fixed
Output Configuration	Positive
Current - Output	250mA, 250mA, 250mA
Control Features	Enable
Voltage - Output (Min/Fixed)	3V 3V 1.8V
Number of Regulators	3
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	150μA
Voltage Dropout (Max)	0.275V @ 250mA 0.275V @ 250mA 0.275V @ 250mA
PSRR	70dB ~ 45dB (100Hz ~ 1kHz)
Seated Height-Max	0.9 mm
Dropout Voltage1-Nom	0.17 V
Output Voltage1-Max	3.06 V
Output Voltage1-Min	2.94 V
Regulator Type	FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	2%
Output Current1-Max	0.25 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.275 V
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	7 V
Adjustability	FIXED
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	3 V
Output Voltage2-Max	3.06 V
Output Voltage2-Min	2.94 V
Output Current2-Max	0.25 A
Dropout Voltage2-Max	0.275 V
Width	4 mm
Length	4 mm
RoHS Status	Non-RoHS Compliant

MIC2215-PPGBML-TR Product Details

MIC2215-PPGBML-TR Overview

An Tape & Reel (TR) case is included with the delivery. There is a 16-VQFN Exposed Pad, 16-MLF® case with the integrated voltage regulator. In terms of output type, Fixed is what the Regulator IC produces. The electronic component implements 3 Voltage regulator ICs. IC Regulator is possible to alter the range of the operating temperature of Surface Mount in the device. In order for this IC voltage regulator to operate, the temperature has to be kept at -40°C~125°C degrees. In this case, the output function that is configured for this regulator IC is Positive. There is an 250mA, 250mA, 250mAmp current output on this voltage regulator IC. It has a total of 16 pins on IC voltage regulator. In order to ensure prompt, adequate, and prompt performance, this regulator has 3 outputs in total. It is MIC2215 for this regulator, just for your information. In this instance, we are dealing with a typical Other Regulators-shaped component. It is worth mentioning that the regulator type for this regulator IC is FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR. In order to pack the regulator, the method is TAPE AND REEL. This regulator IC is a part of the -- Series.
