Name: MIC2214-PNBML TR
Brand: Microchip Technology
SKU: MIC2214-PNBML TR
Availability: InStock

new-10%

MIC2214-PNBML TR

Manufacturer part number:MIC2214-PNBML TR

Manufacturer:Microchip Technology

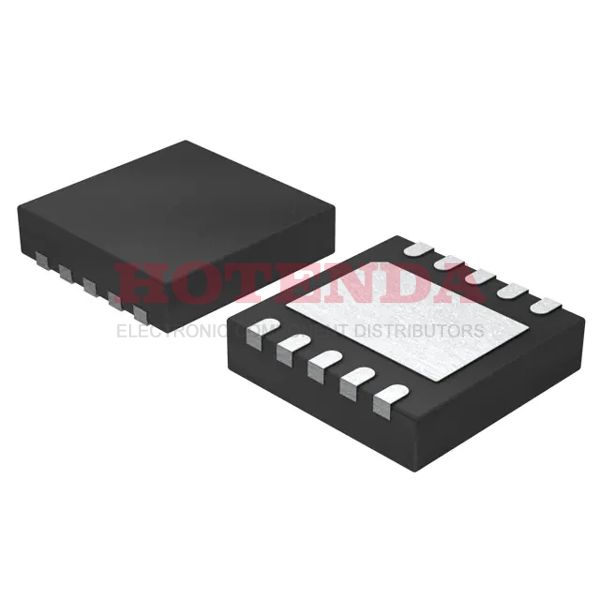

Description:Enable, Power On Reset Fixed 0.5 mm MIC2214 PMIC -- Series 10-VFDFN Exposed Pad, 10-MLF®

Case Package:SOT-23

Datasheet:MIC2214-PNBML TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	10-VFDFN Exposed Pad, 10-MLF®
Surface Mount	YES
Supplier Device Package	10-MLF® (3x3)
Number of Terminals	10
Package	Tape & Reel (TR)
Base Product Number	MIC2214
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Published	2005
Series	--
JESD-609 Code	e0
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn/Pb)
HTS Code	8542.39.00.01
Terminal Position	DUAL
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	240
Number of Functions	1
Terminal Pitch	0.5 mm
Reach Compliance Code	compliant
Base Part Number	MIC2214
JESD-30 Code	S-PDSO-N10
Number of Outputs	2
Qualification Status	Not Qualified
Voltage - Input (Max)	5.5V
Output Type	Fixed
Output Configuration	Positive
Current - Output	150mA, 300mA
Control Features	Enable, Power On Reset
Voltage - Output (Min/Fixed)	3V 2.85V
Number of Regulators	2
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	80μA
Voltage Dropout (Max)	0.25V @ 150mA 0.42V @ 300mA
PSRR	60dB ~ 40dB (1KHz ~ 20kHz)
Seated Height-Max	1 mm
Output Voltage1-Max	3.06 V
Output Voltage1-Min	2.94 V
Regulator Type	FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR
Output Current1-Max	0.15 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.25 V
Operating Temperature TJ-Max	125 °C
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	3 V
Output Voltage2-Max	2.907 V
Output Voltage2-Min	2.793 V
Output Current2-Max	0.3 A
Dropout Voltage2-Max	0.42 V
Width	3 mm
Length	3 mm
RoHS Status	Non-RoHS Compliant

MIC2214-PNBML TR Product Details

MIC2214-PNBML TR Overview

This Voltage Regulator IC comes inTape & Reel (TR) packaging. This battery regulator is contained in a 10-VFDFN Exposed Pad, 10-MLF® package. The IC chip's output type is Fixed. This electronic component implements 2 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 150mA, 300mA. To ensure prompt, sufficient performance, this part features 2 outputs in total. FYI, the basic part number for this IC regulator is MIC2214. The regulator type for this IC regulator is FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR. It is part of the -- Series.
