Name: MIC2213-AAYML-TR
Brand: Microchip Technology
SKU: MIC2213-AAYML-TR
Price: 1.61000 USD
Availability: InStock

new-10%

MIC2213-AAYML-TR

Manufacturer part number:MIC2213-AAYML-TR

Manufacturer:Microchip Technology

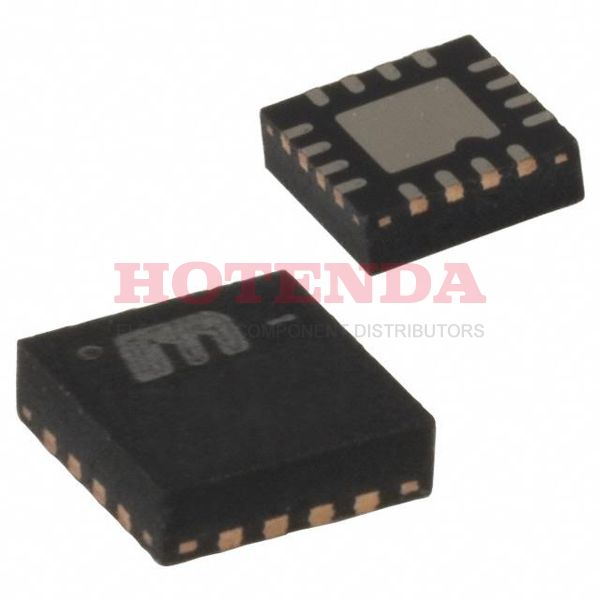

Description:Enable, Power On Reset Adjustable 0.65 mm MIC2213 PMIC -- Series 16 16-VQFN Exposed Pad, 16-MLF®

Case Package:SOT-23

Datasheet:MIC2213-AAYML-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	16-VQFN Exposed Pad, 16-MLF®
Surface Mount	YES
Number of Pins	10
Supplier Device Package	16-MLF® (4x4)
Number of Terminals	16
Mounting Style	SMD/SMT
Supplier Package	VQFN
Input Voltage Range	2.25, 5.5 V
Maximum Input Voltage	5.5 V
Junction to Ambient	60 °C/W
Mounting	Surface Mount
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Package	Tape & Reel (TR)
Base Product Number	MIC2213
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Published	2005
Series	--
JESD-609 Code	e4
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN Code	EAR99
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
HTS Code	8542.39.00.01
Subcategory	PMIC - Power Management ICs
Terminal Position	QUAD
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.65 mm
Reach Compliance Code	compliant
Base Part Number	MIC2213
Pin Count	16
JESD-30 Code	S-XQCC-N16
Function	LDO
Number of Outputs	2
Qualification Status	Not Qualified
Voltage - Input (Max)	5.5V
Output Voltage	5.5V
Output Type	Adjustable
Polarity	Positive
Output Configuration	Positive
Output Current	0.3 A
Current - Output	150mA, 300mA
Control Features	Enable, Power On Reset
Voltage - Output (Min/Fixed)	1.25V
Number of Regulators	2
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	80μA
Voltage Dropout (Max)	0.25V @ 150mA 0.42V @ 300mA
PSRR	60dB ~ 40dB (1KHz ~ 20kHz)
Seated Height-Max	1 mm
Dropout Voltage	120mV
Product Type	LDO Voltage Regulators
Output Voltage1-Max	5 V
Output Voltage1-Min	1.25 V
Regulator Type	ADJUSTABLE POSITIVE MULTIPLE OUTPUT LDO REGULATOR
Output Current1-Max	0.15 A
Voltage - Output (Max)	5.5V
Dropout Voltage1-Max	0.25 V
Min Current Limit	300mA
Screening Level	Extended Industrial
Operating Temperature TJ-Max	125 °C
Line Regulation	0.3 %/V
Operating Temperature TJ-Min	-40 °C
Load Regulation	1.5 %
Output Voltage2-Max	5 V
Output Voltage2-Min	1.25 V
Output Current2-Max	0.3 A
Dropout Voltage2-Max	0.42 V
Product Category	LDO Voltage Regulators
Width	4 mm
Length	4 mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MIC2213-AAYML-TR Product Details

MIC2213-AAYML-TR Overview

Tape & Reel (TR) cases are used for delivery. The Liner regulator IC is packaged in 16-VQFN Exposed Pad, 16-MLF® case. Adjustable is the output type of the Voltage Regulator IC. As part of this electrical component, 2 regulators are implemented. Variations are made to the Surface Mount operating temperature range by the Voltage Regulator IC. Default settings are set to -40°C~125°C degrees. There is a Positive configured as the output function for this IC regulator. There is a current output of 150mA, 300mA from this regulator IC. There are a total of 16 pins on this board. There are 2 outputs total on this voltage regulator IC in order to ensure that prompt and sufficient performance is achieved. There is a dropout voltage of 10 volts on this IC regulator. Chips have 10 pins. For your information, the basic part number for this regulator IC is MIC2213. In this case, we have a typical PMIC - Power Management ICs component. There is one type of regulator for this device, which is ADJUSTABLE POSITIVE MULTIPLE OUTPUT LDO REGULATOR. This IC regulator is a part of the -- Series of devices. You should use the regulator IC when the temperature is below 125°C. It is not possible to operate the chip below -40°C operating temperature.
