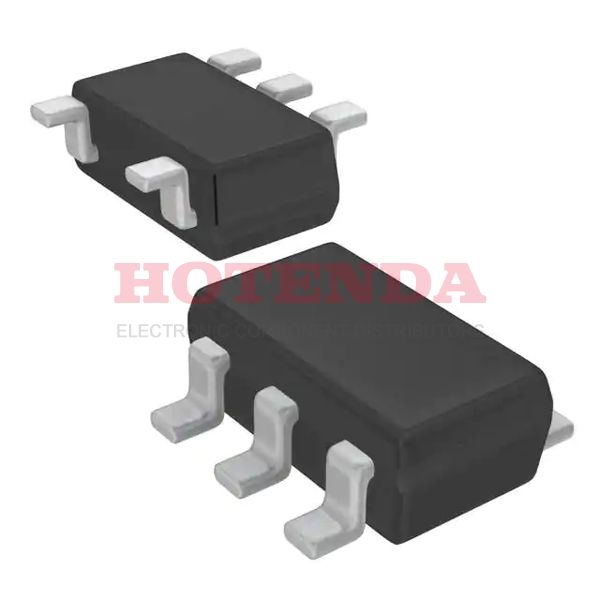

MIC2142BD5 TR Overview
It is designed to provide optimal performance by utilizing the Tape & Reel (TR) package. This harley voltage regulator is available in the SC-74A, SOT-753 package for the purpose of space saving. The voltage regulator 12v has 1 outputs. Adjusting voltage regulator's output pins generate Adjustable output. This switching regulator is designed to fit the Surface Mount mounting system. In order for it to operate properly, dc to dc voltage regulator's operating temperature should be at -40°C~85°C TA. This DC-DC switching regulator has a switching frequency of 330kHz. The voltage regulator can be operated with a voltage as low as 2.2V as an input voltage. DC DC switching regulator's maximum design flexibility comes from its output current of 200mA. 16V volts is DC DC switching regulator's maximum input voltage. DC/DC regulators such as this one belong to the MIC2142 family of products. By using 22V as the maximum output voltage, adjusting voltage regulator is easy to operate.
MIC2142BD5 TR Features
1 outputs
MIC2142BD5 TR Applications
There are a lot of Microchip Technology MIC2142BD5 TR Voltage Regulators applications.
- USB circuits
- Electric water heaters
- Domestic water pumps
- Gear/thread machining machines
- Servo drive system
- Program control systems
- Direct power supply system
- Shearing machines
- Arc suppression circuits
- Emergency lighting monitoring equipment
