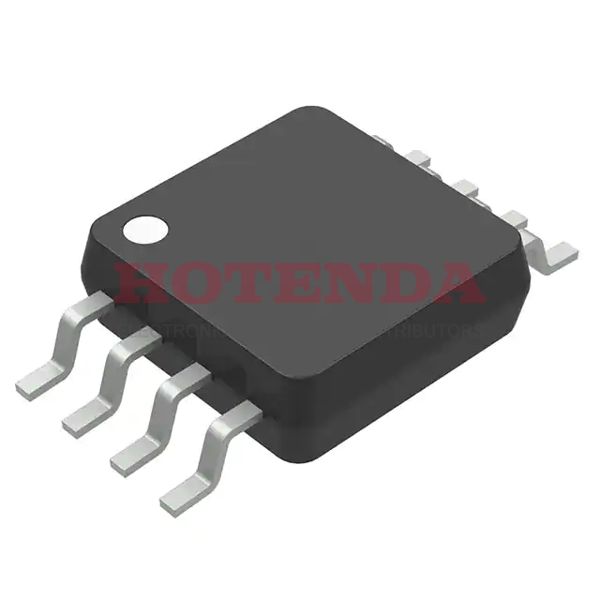

MCP6242T-E/MSVAO Overview
Packaged in a 8-TSSOP, 8-MSOP (0.118, 3.00mm Width) case, the buffer op amp is ready to use. There are two types of operational amplifiers in this circuit. It comes in a Tape & Reel (TR) case, which protects instrumentation amplifier from damage during delivery. The number of terminations approaches 8. I would like to remind you that this buffer op amp should be powered by an 5V battery. A type of Operational Amplifier op amp ic can be identified by the fact that this is a type of Operational Amplifier device. For this electrical component, the recommended mounting type is Surface Mount, which is the most common. In terms of operating temperature, this instrumentation amplifier performs well at a temperature of about -40°C~125°C TA . There are 2 circuits on this op amp. There are more than a few advantages to using this instrumentation amplifier, one of which is that it outputs Rail-to-Rail signals. As a result, it is recommended that a power supply of 50μA be used with this electronic part. As the name implies, Automotive, AEC-Q100 refers to the series of the buffer op amp.
MCP6242T-E/MSVAO Features
supply voltage of 5V
Output Type: Rail-to-Rail
MCP6242T-E/MSVAO Applications
There are a lot of Microchip Technology MCP6242T-E/MSVAO Instrumentational OP Amps applications.
- Active probe
- Proportional counter tubes
- Commercial audio systems
- Ultrasound transducers
- Automotive sensors
- Cinema or auditorium audio system
- Medical imaging
- High speed sample
- Professional videography
- MP3
