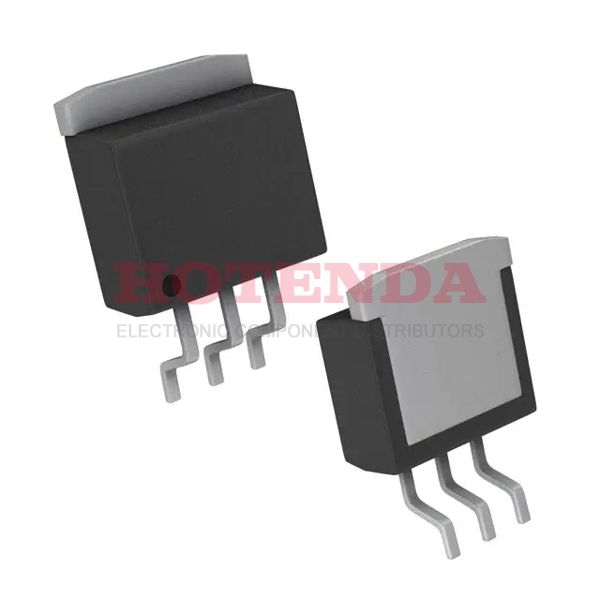

Name: MCP1827S-3002E/EB
Brand: Microchip Technology
SKU: MCP1827S-3002E/EB
Price: 1.88000 USD
Availability: InStock

new-10%

MCP1827S-3002E/EB

Manufacturer part number:MCP1827S-3002E/EB

Manufacturer:Microchip Technology

Description:-- Fixed 2.54mm MCP1827S PMIC -- Series 3 TO-263-4, D2Pak (3 Leads + Tab), TO-263AA

Case Package:SOT-23

Datasheet:MCP1827S-3002E/EB Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-263-4, D2Pak (3 Leads + Tab), TO-263AA
Surface Mount	YES
Number of Pins	3
Supplier Device Package	3-DDPAK
Number of Terminals	3
Mounting Style	SMD/SMT
Supplier Package	D2PAK
Input Voltage Range	6, 2.3 V
Maximum Input Voltage	6 V
Junction to Ambient	31.4 °C/W
Mounting	Surface Mount
Package	Tube
Base Product Number	MCP1827
Mfr	Microchip Technology
Product Status	Active
Qualification	AEC-Q100
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Package Shape	RECTANGULAR
Operating Temperature	-40°C~125°C
Packaging	Tube
Published	2007
Series	--
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
HTS Code	8542.39.00.01
Terminal Position	SINGLE
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	245
Number of Functions	1
Terminal Pitch	2.54mm
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	MCP1827S
Pin Count	3
JESD-30 Code	R-PSSO-G3
Function	LDO
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	6V
Output Voltage	3V
Output Type	Fixed
Max Output Current	1.5A
Polarity	Positive
Output Configuration	Positive
Output Current	1.5 A
Current - Output	1.5A
Quiescent Current	220μA
Control Features	--
Accuracy	2 %
Output Voltage 1	3V
Voltage - Output (Min/Fixed)	3V
Number of Regulators	1
Min Input Voltage	2.3V
Protection Features	Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Current - Quiescent (Iq)	220μA
Voltage Dropout (Max)	0.6V @ 1.5A
PSRR	60dB (100Hz)
Seated Height-Max	5.08 mm
Dropout Voltage	330mV
Product Type	LDO Voltage Regulators
Dropout Voltage1-Nom	0.33V
Output Voltage1-Max	3.075 V
Output Voltage1-Min	2.925 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	2.5%
Output Current1-Max	1.5 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.6 V
Screening Level	Extended Industrial
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	6.5V
Input Bias Current	120μA
Adjustability	FIXED
Line Regulation	0.05 %/V
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	3 V
Load Regulation	0.5 %
Product Category	LDO Voltage Regulators
Height	4.826mm
Length	10.67mm
Width	11.3538mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MCP1827S-3002E/EB Product Details

MCP1827S-3002E/EB Overview

The package is delivered in a Tube case. In order to package the IC voltage regulator, a TO-263-4, D2Pak (3 Leads + Tab), TO-263AA case is used. On the Voltage regulator IC, there are 3 terminations that can be connected. This IC Regulator has a type of output called Fixed. There are 1 regulators implemented in this electroic component. Surface Mount can be adjusted in the Linear IC in order to vary the temperature range over which Linear Regulator operates. The IC voltage regulator must be maintained at -40°C~125°C degrees for it to function. As you can see, this regulator's output function is configured to be Positive. At present, it can produce an output of up to 1.5A. As you can see, the regulator IC has a total of 3 pins. The regulator has a total of 1 outputs to make sure that it delivers prompt, sufficient outputs. A dropout voltage of 10 volts is what makes it a dropout voltage. Depending on the chip, 3 pins may be available. For your information, part number MCP1827S is the basic part number for this voltage regulator IC. As far as the regulator type, it is a FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR type. There is a maximum output current of 1.5A for this regulator to meet the operational requirements. It operates in the 220μA Quiescent Current state. The -- Series is a series of products made by D-Link.
